Technical Drawing I (2015)

Craft Certificate · 2015 · June/July

7 pages · PDF · 398.0 KB

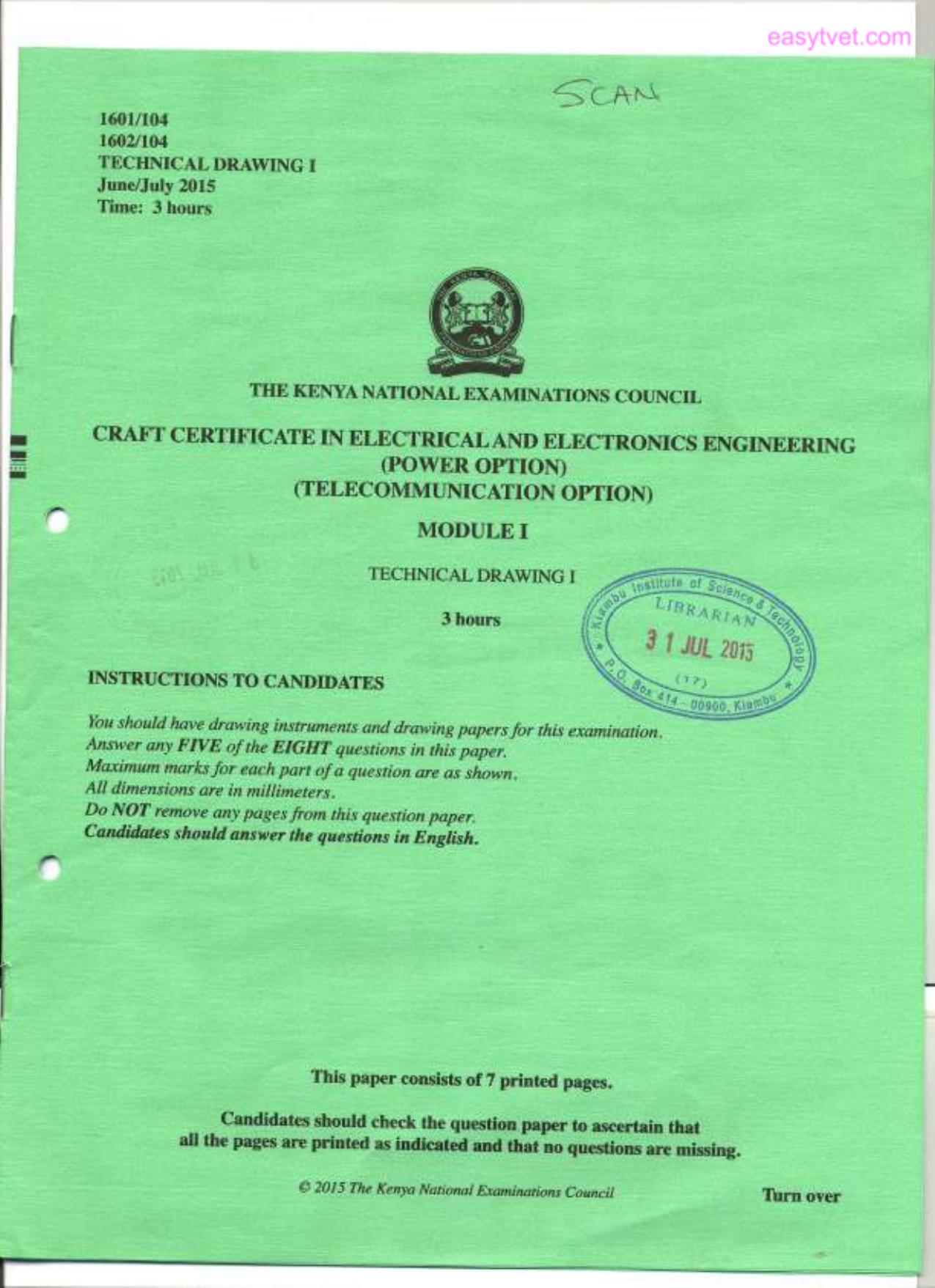

  1. Technical Drawing I (2015) — page 1 of 7

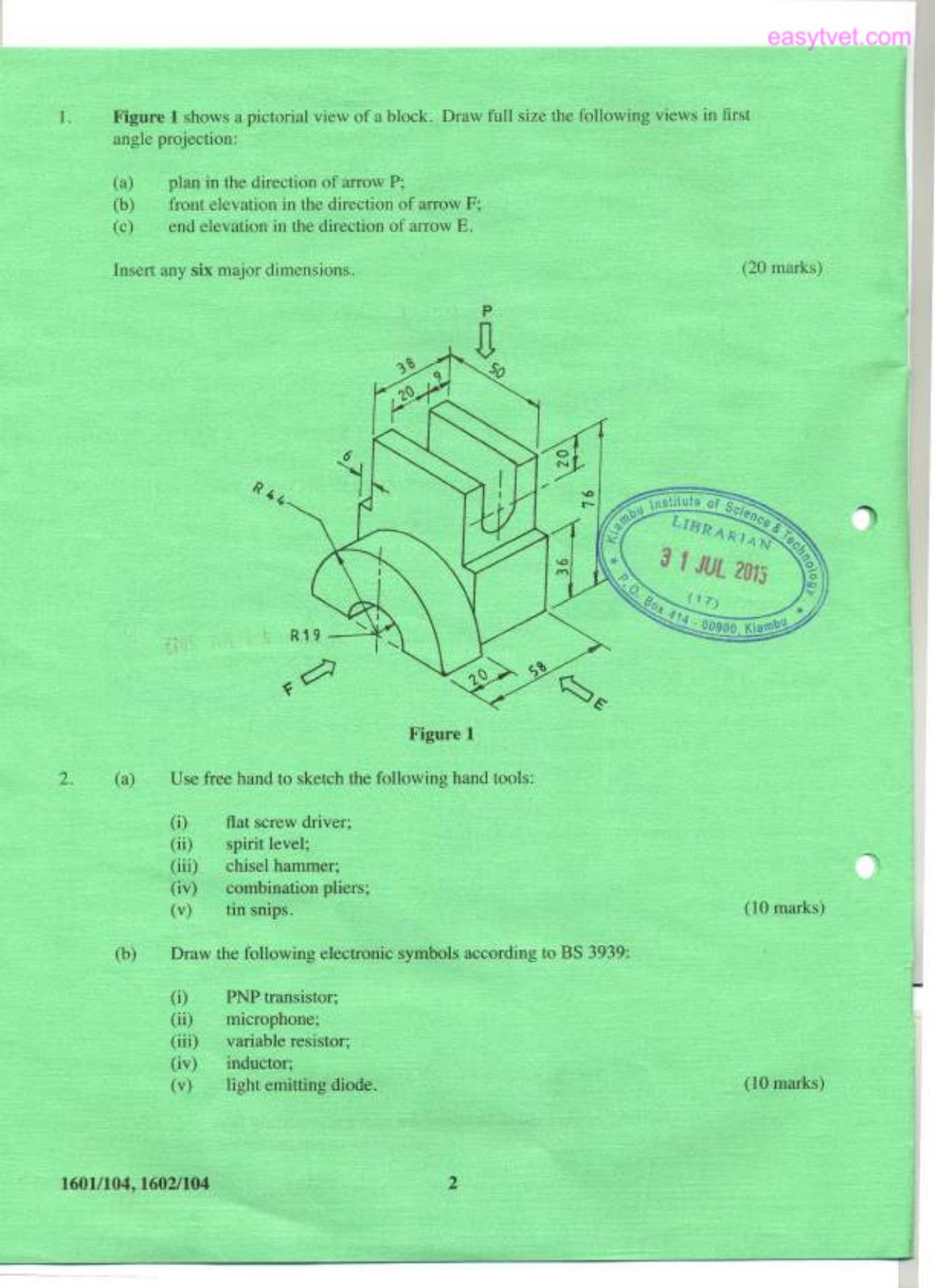

  2. Technical Drawing I (2015) — page 2 of 7

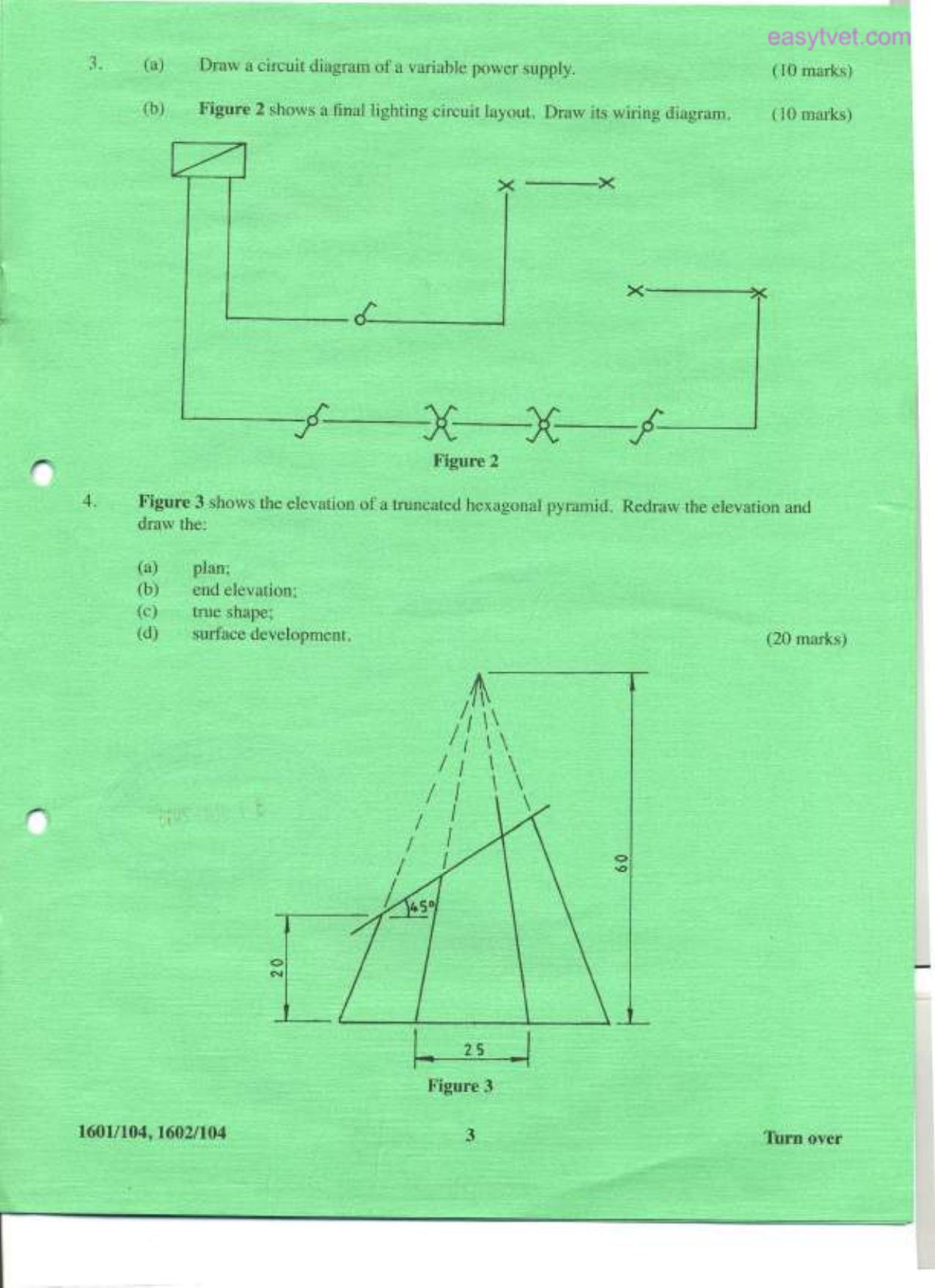

  3. Technical Drawing I (2015) — page 3 of 7

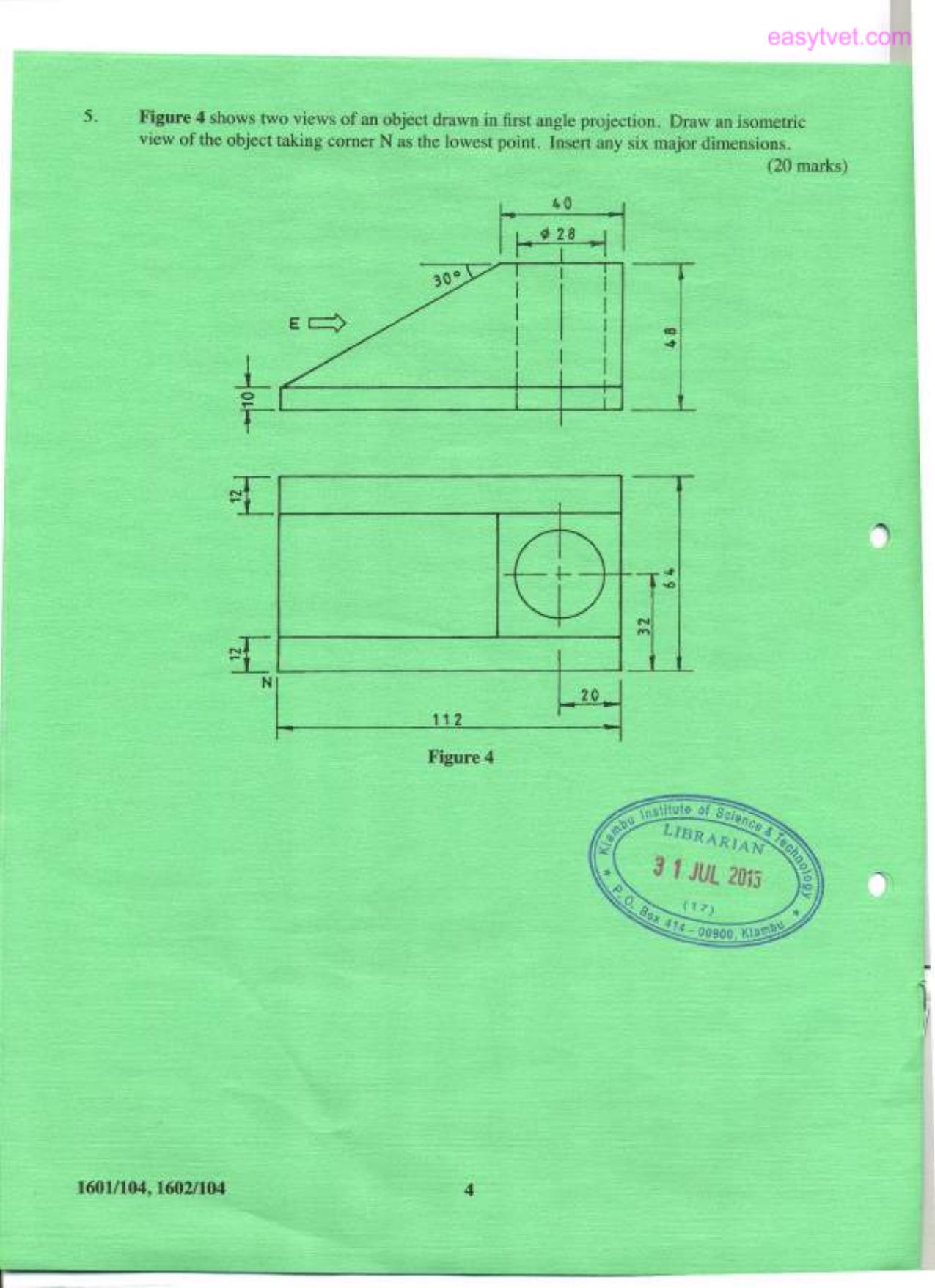

  4. Technical Drawing I (2015) — page 4 of 7

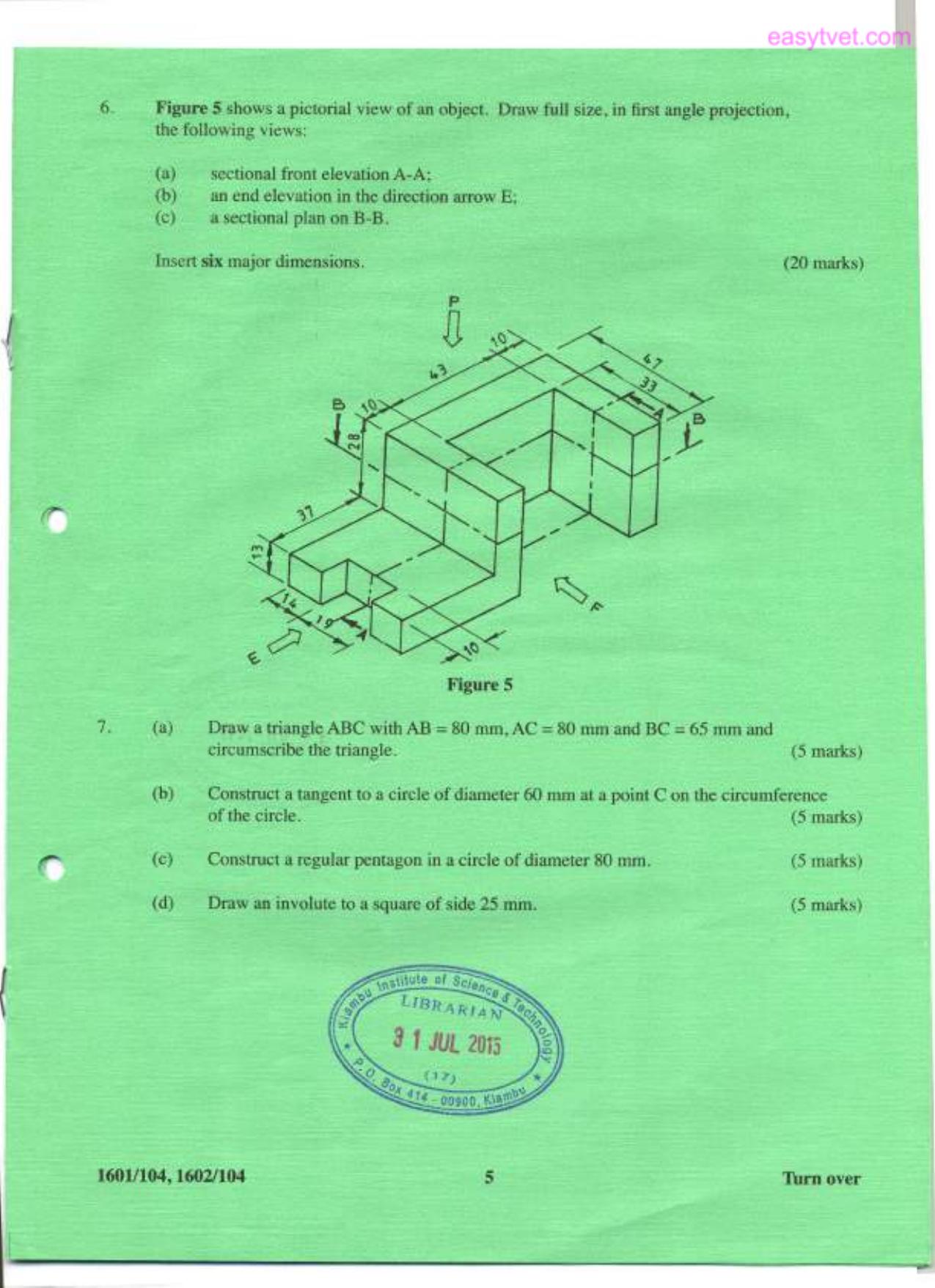

  5. Technical Drawing I (2015) — page 5 of 7

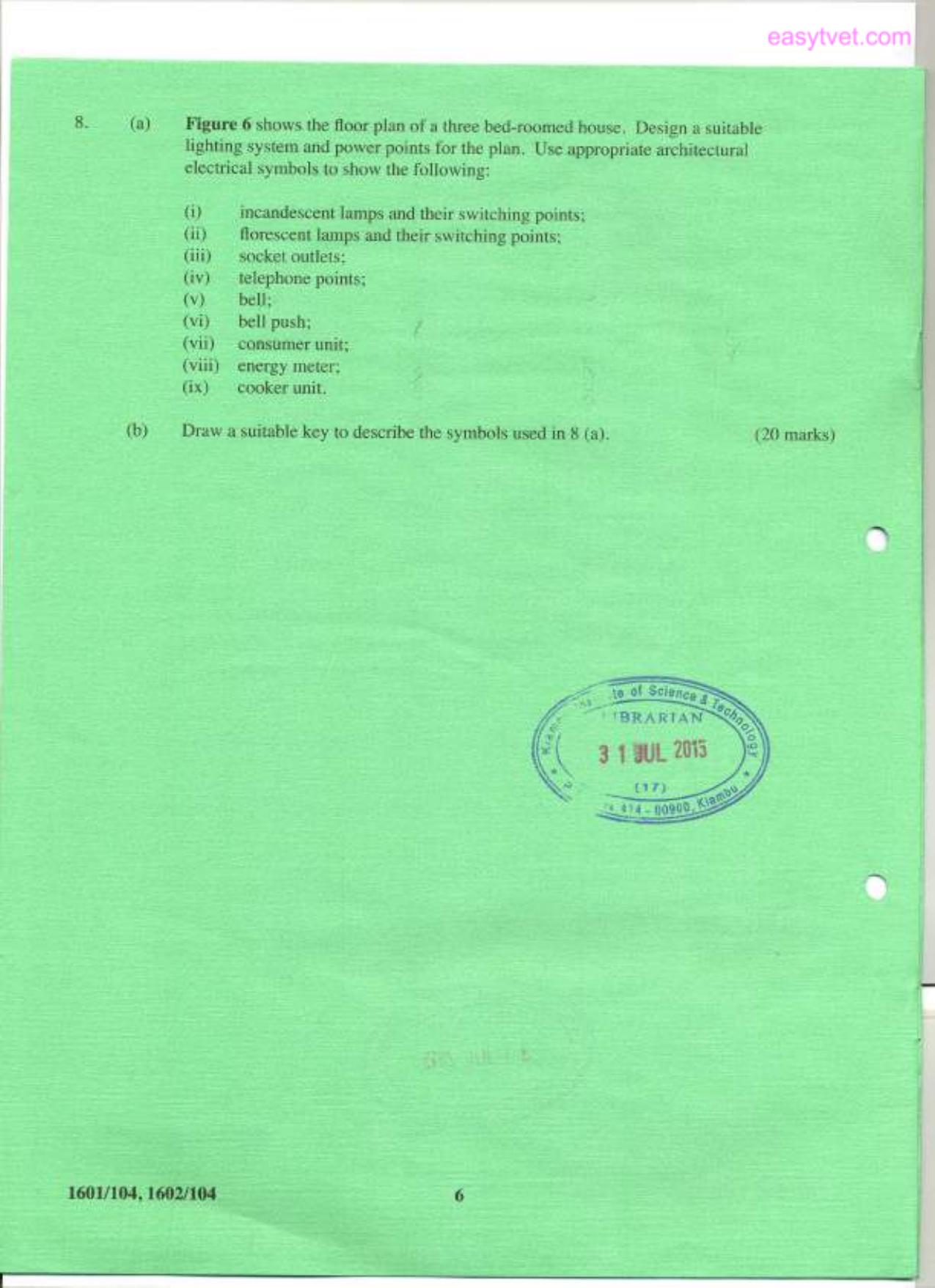

  6. Technical Drawing I (2015) — page 6 of 7

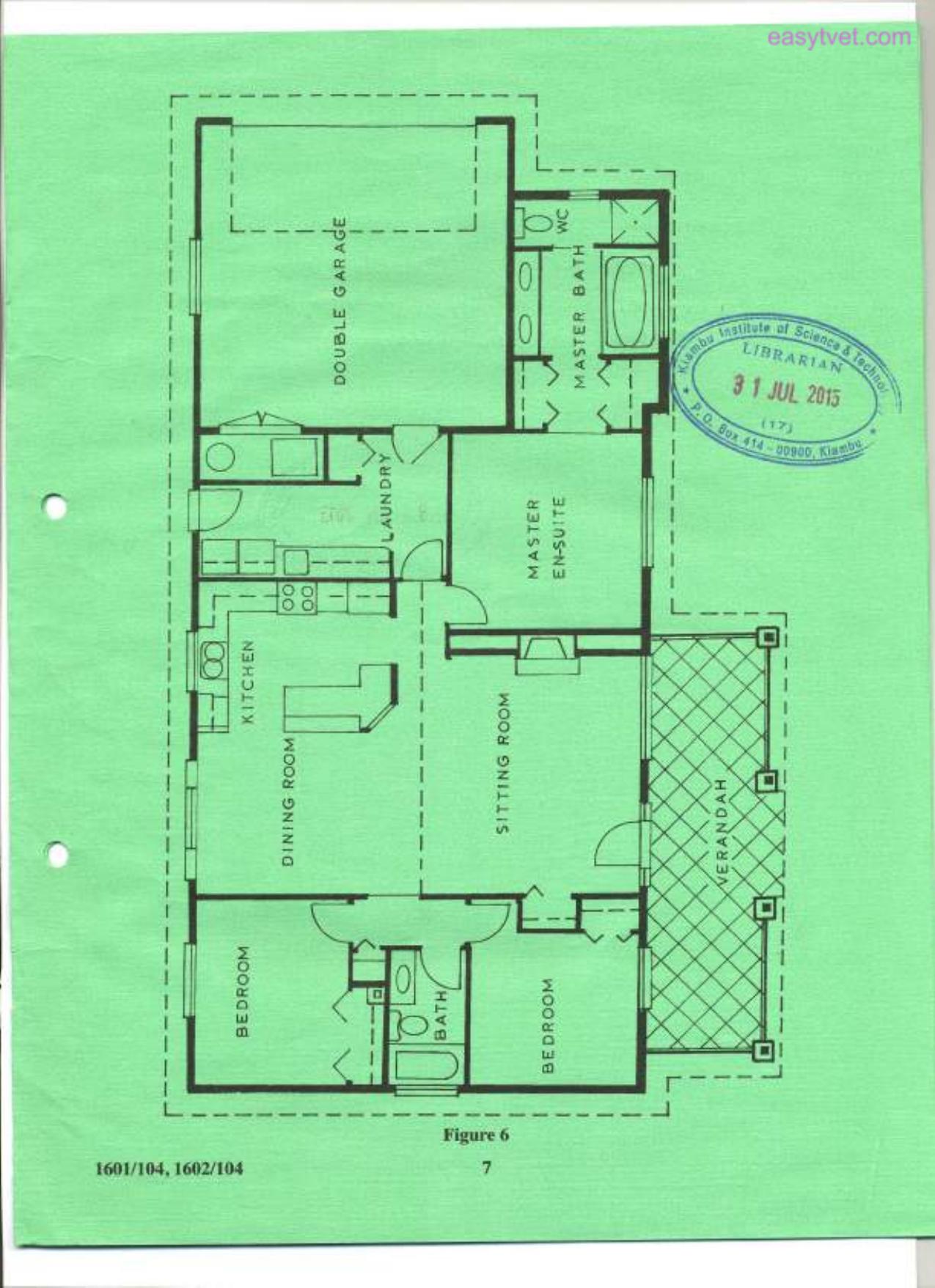

  7. Technical Drawing I (2015) — page 7 of 7
Download paper
