Technical Drawing (2017)

Craft Certificate · 2017 · June/July

10 pages · PDF · 483.3 KB

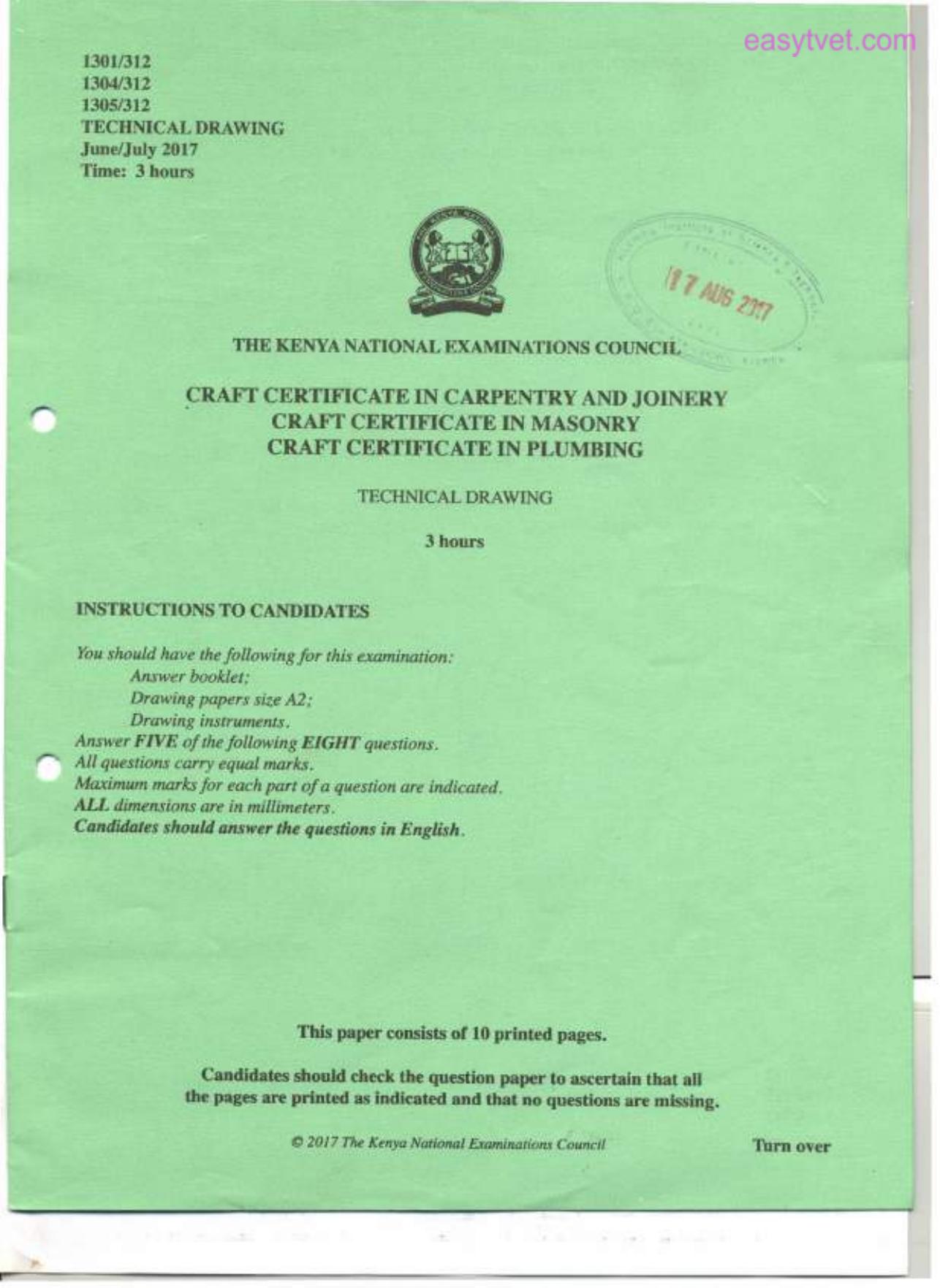

  1. Technical Drawing (2017) — page 1 of 10

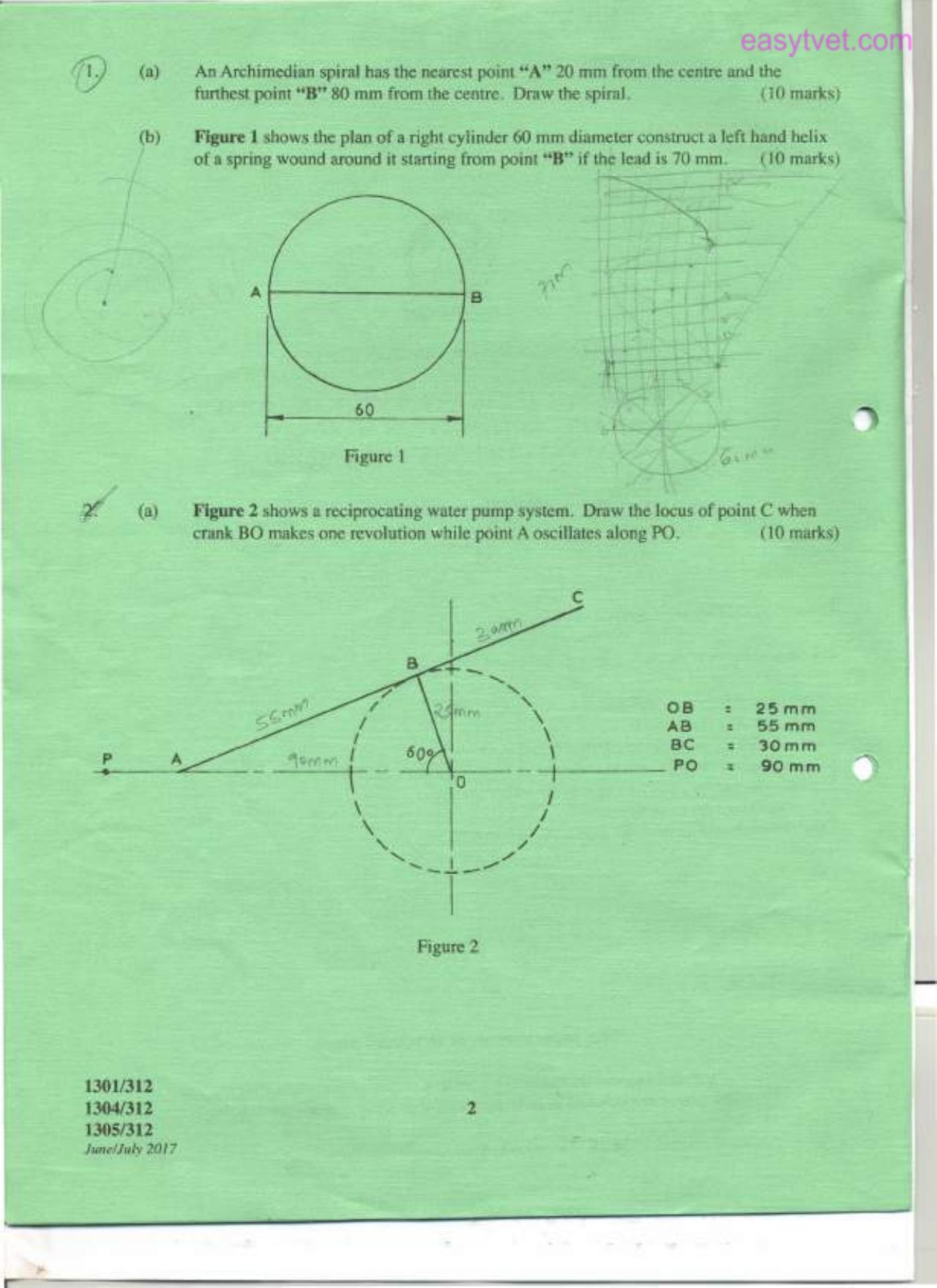

  2. Technical Drawing (2017) — page 2 of 10

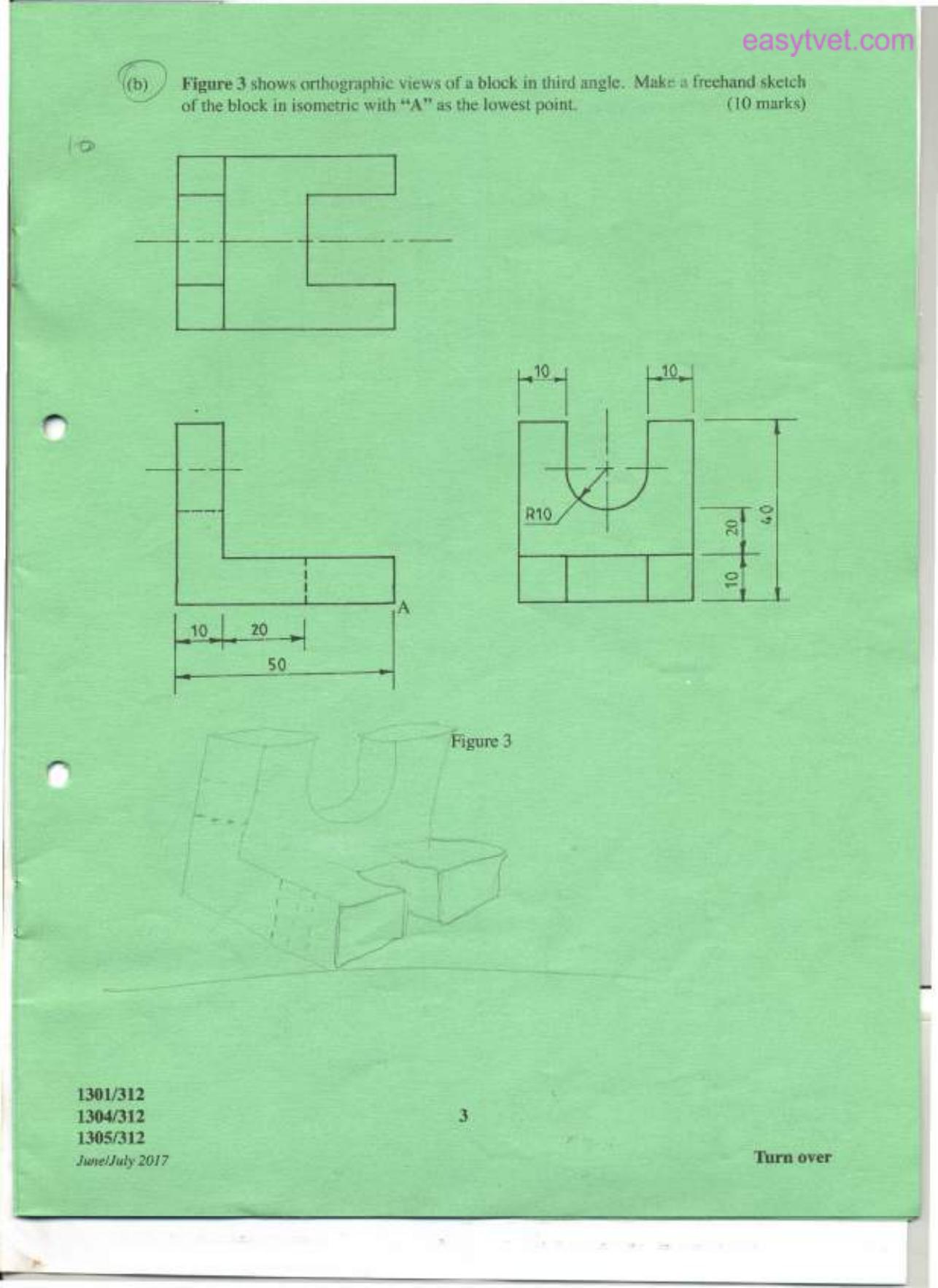

  3. Technical Drawing (2017) — page 3 of 10
  4. Technical Drawing (2017) — page 4 of 10

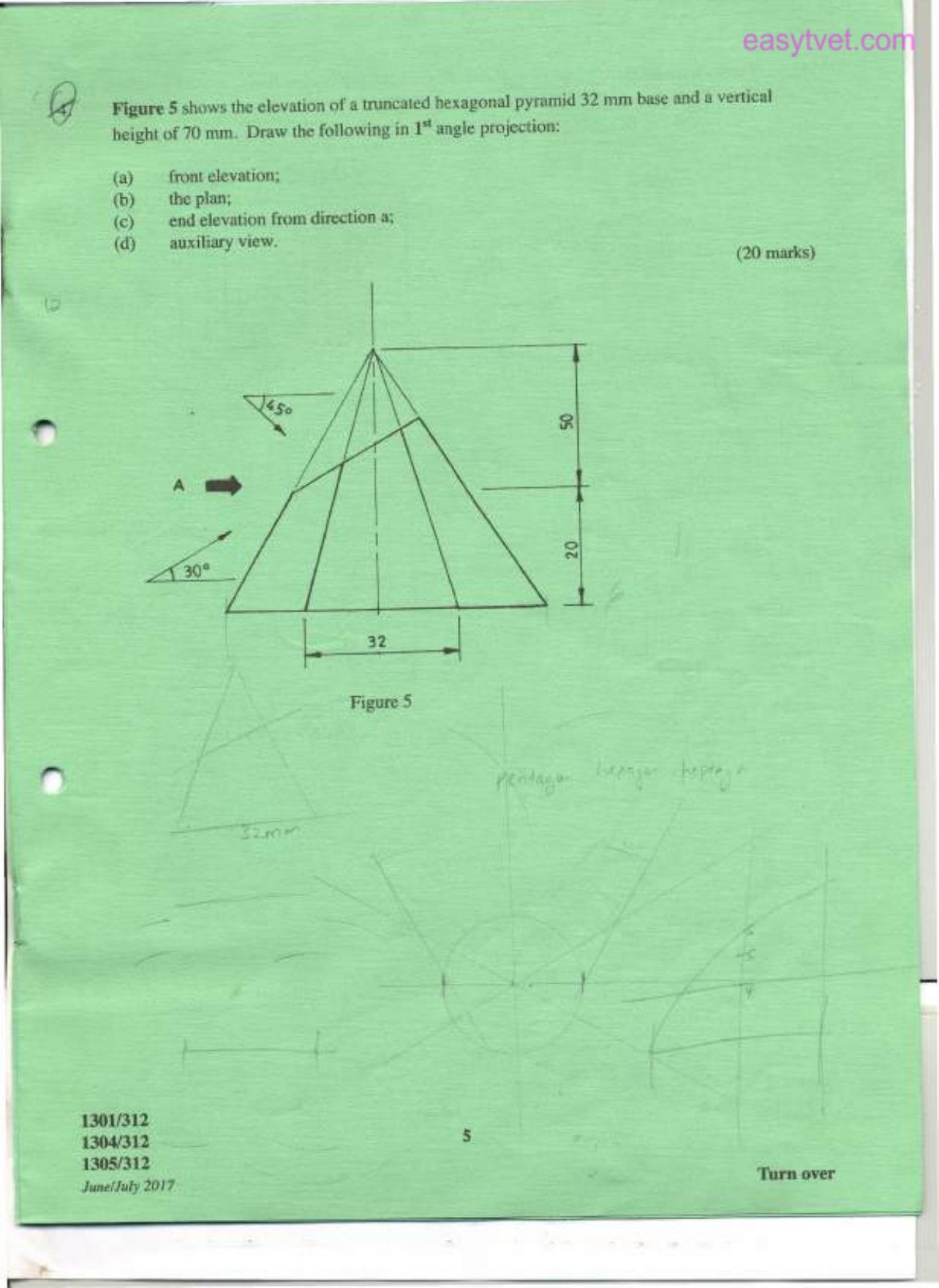

  5. Technical Drawing (2017) — page 5 of 10

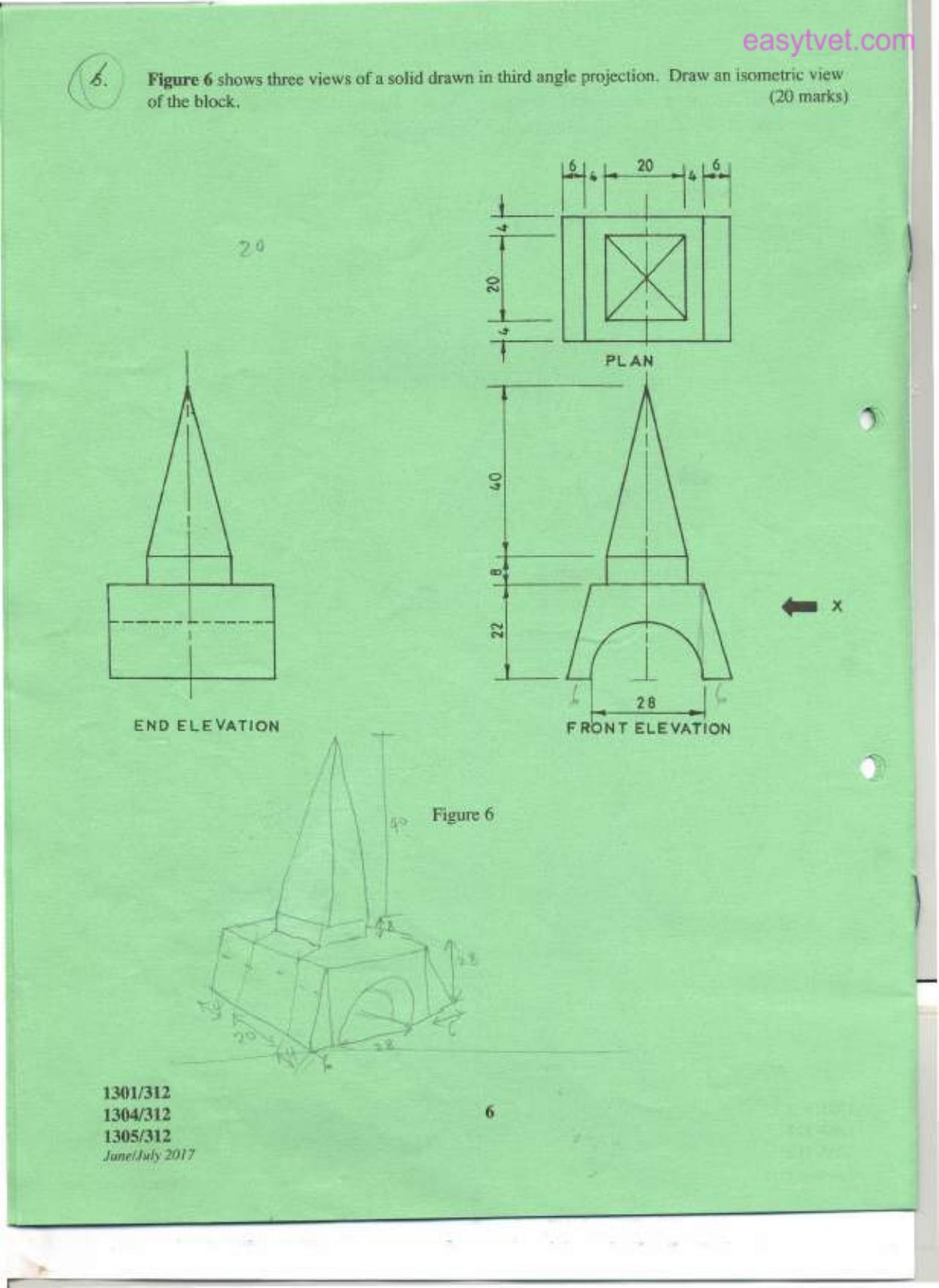

  6. Technical Drawing (2017) — page 6 of 10

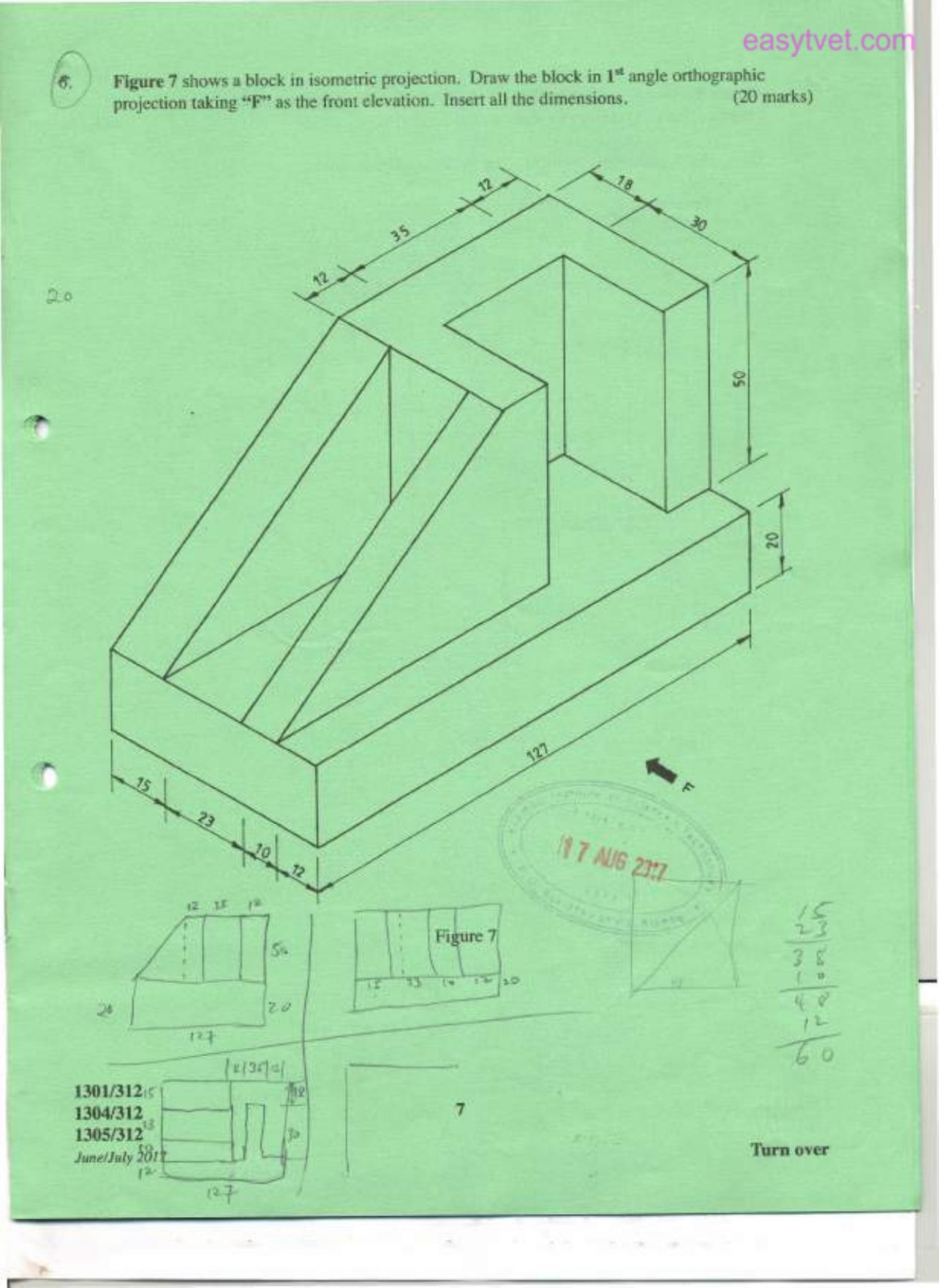

  7. Technical Drawing (2017) — page 7 of 10

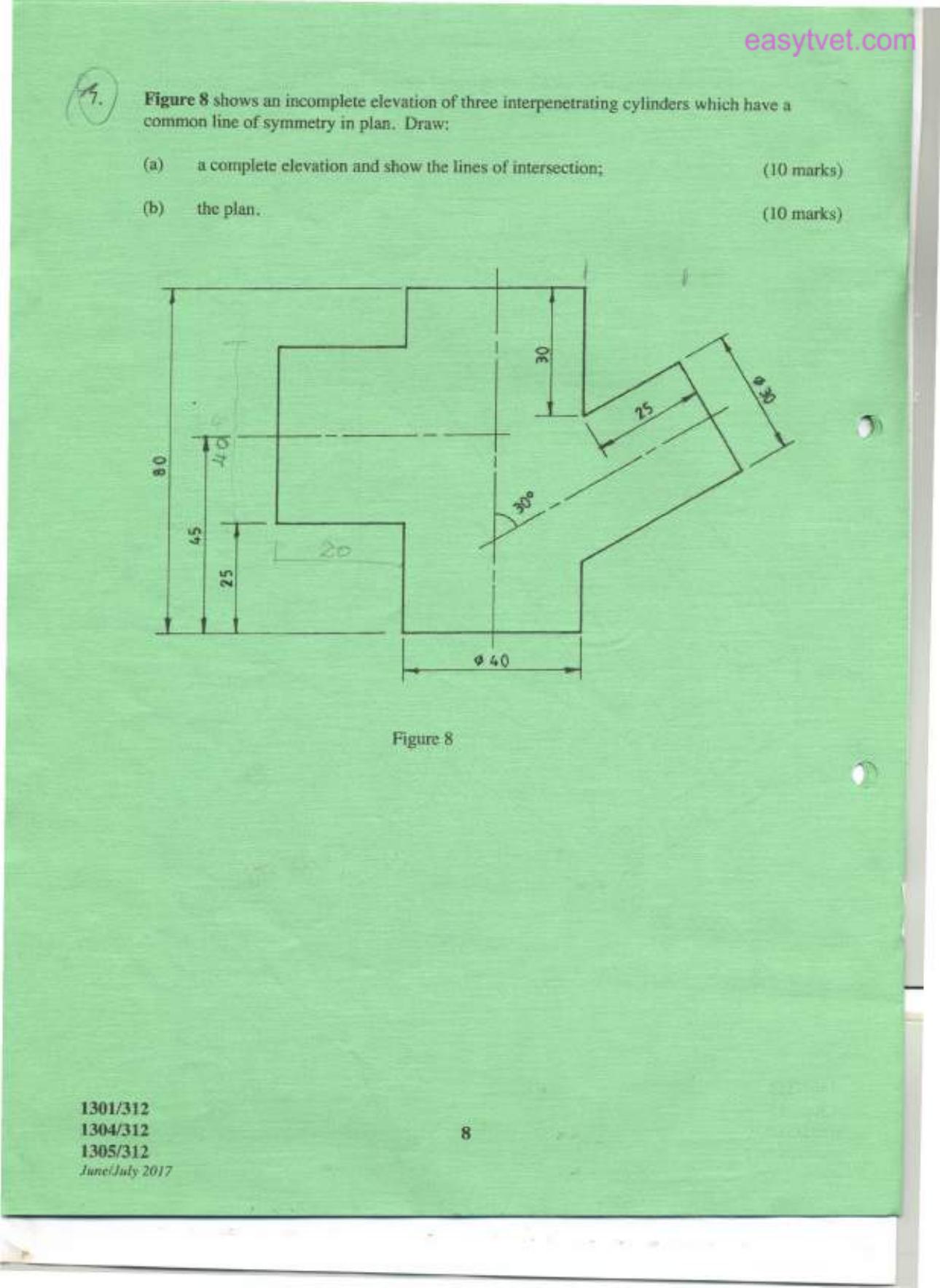

  8. Technical Drawing (2017) — page 8 of 10
  9. Technical Drawing (2017) — page 9 of 10

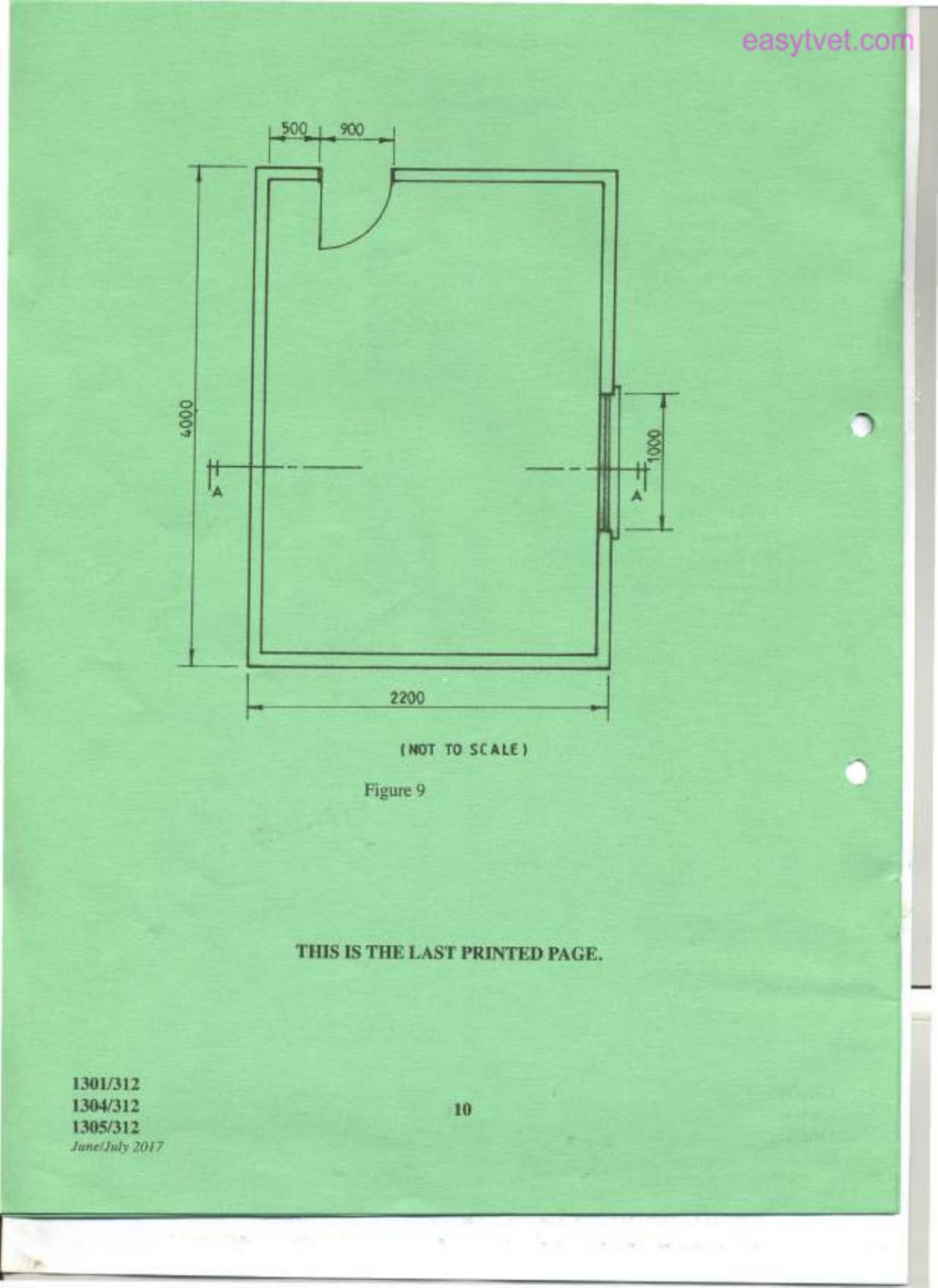

  10. Technical Drawing (2017) — page 10 of 10
