MasomoKenyaShare a paper

Technical Drawing (2017)

Craft Certificate · 2017 · June/July

6 pages · PDF · 266.9 KB

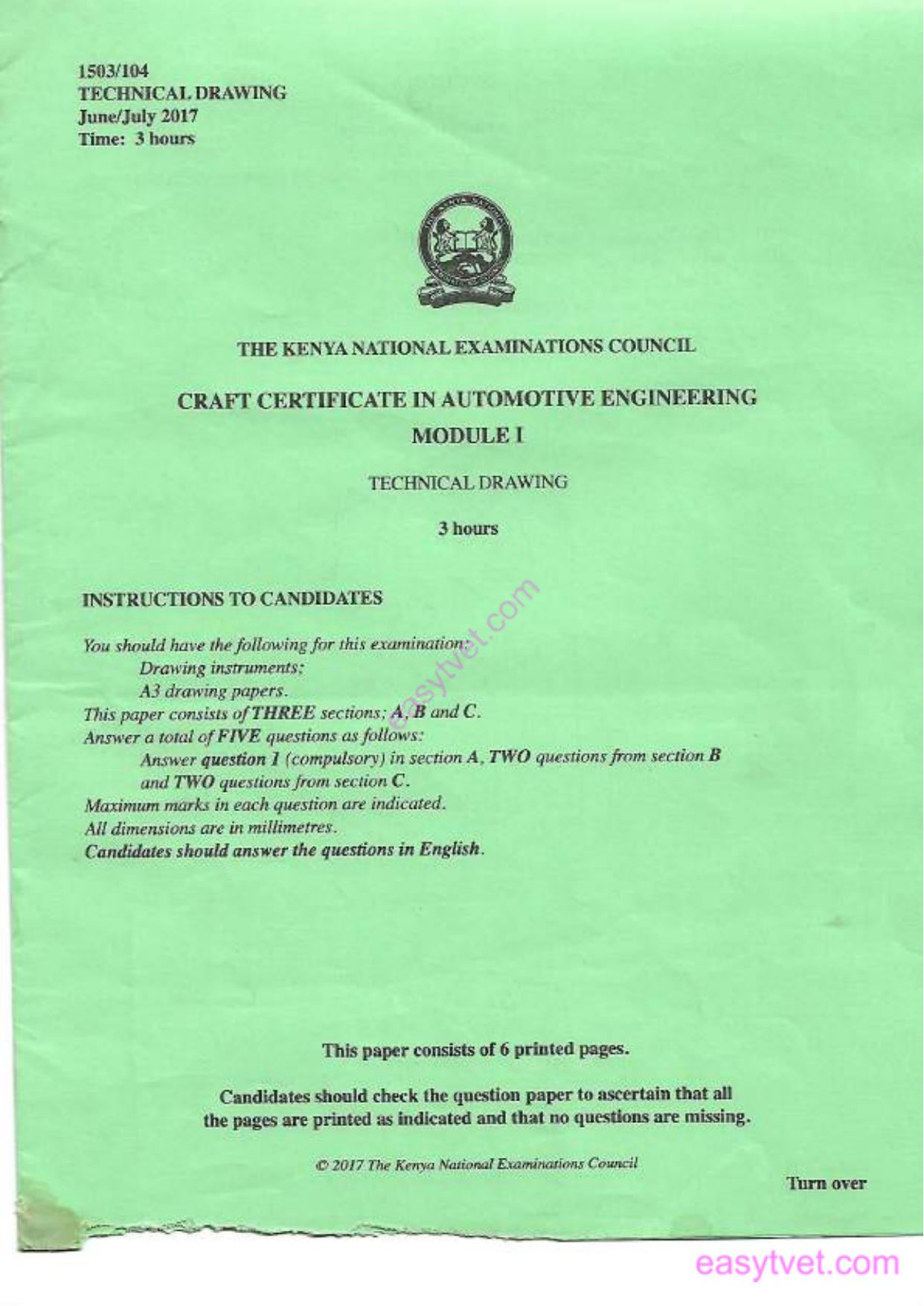

  1. Technical Drawing (2017) — page 1 of 6

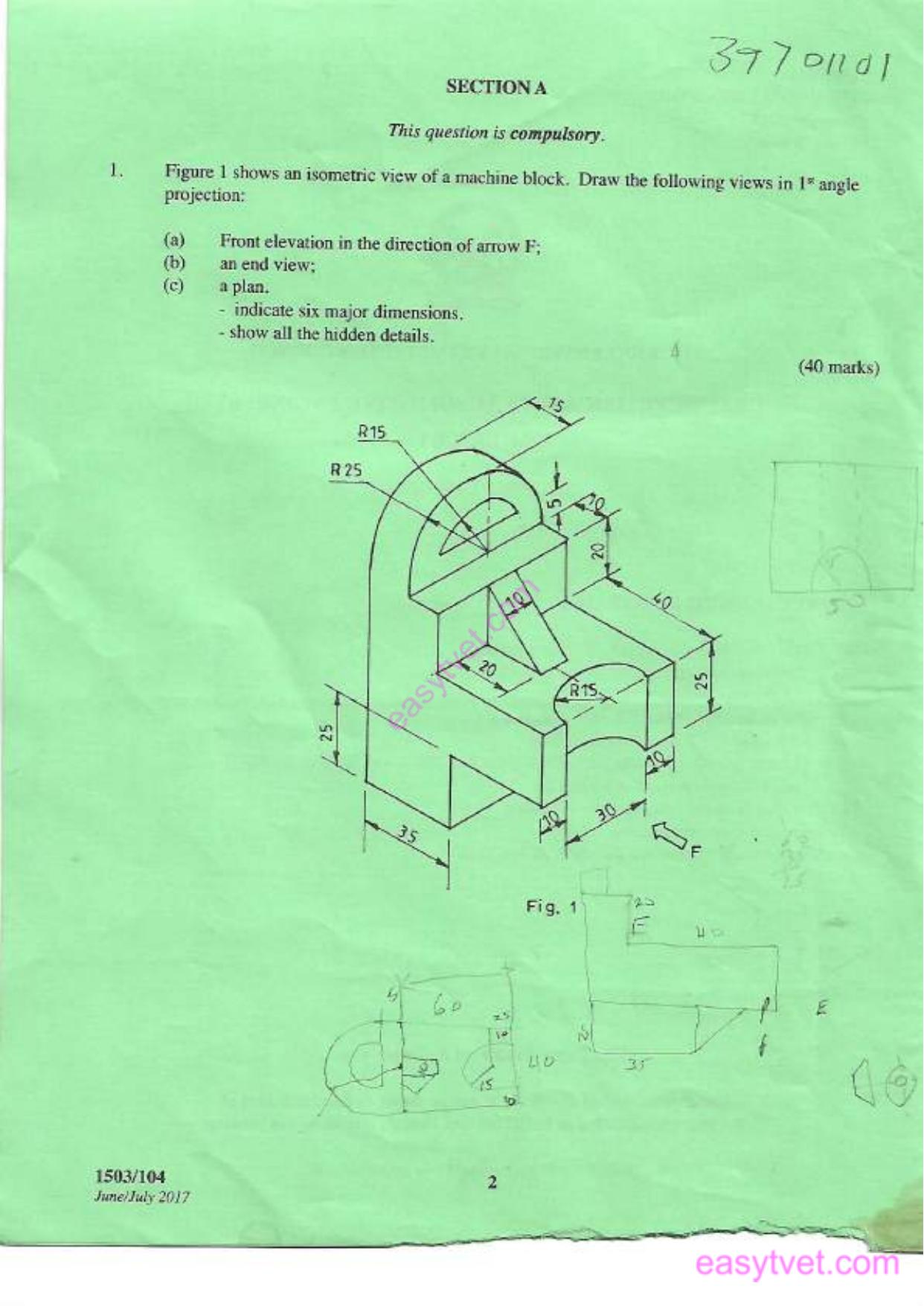

  2. Technical Drawing (2017) — page 2 of 6

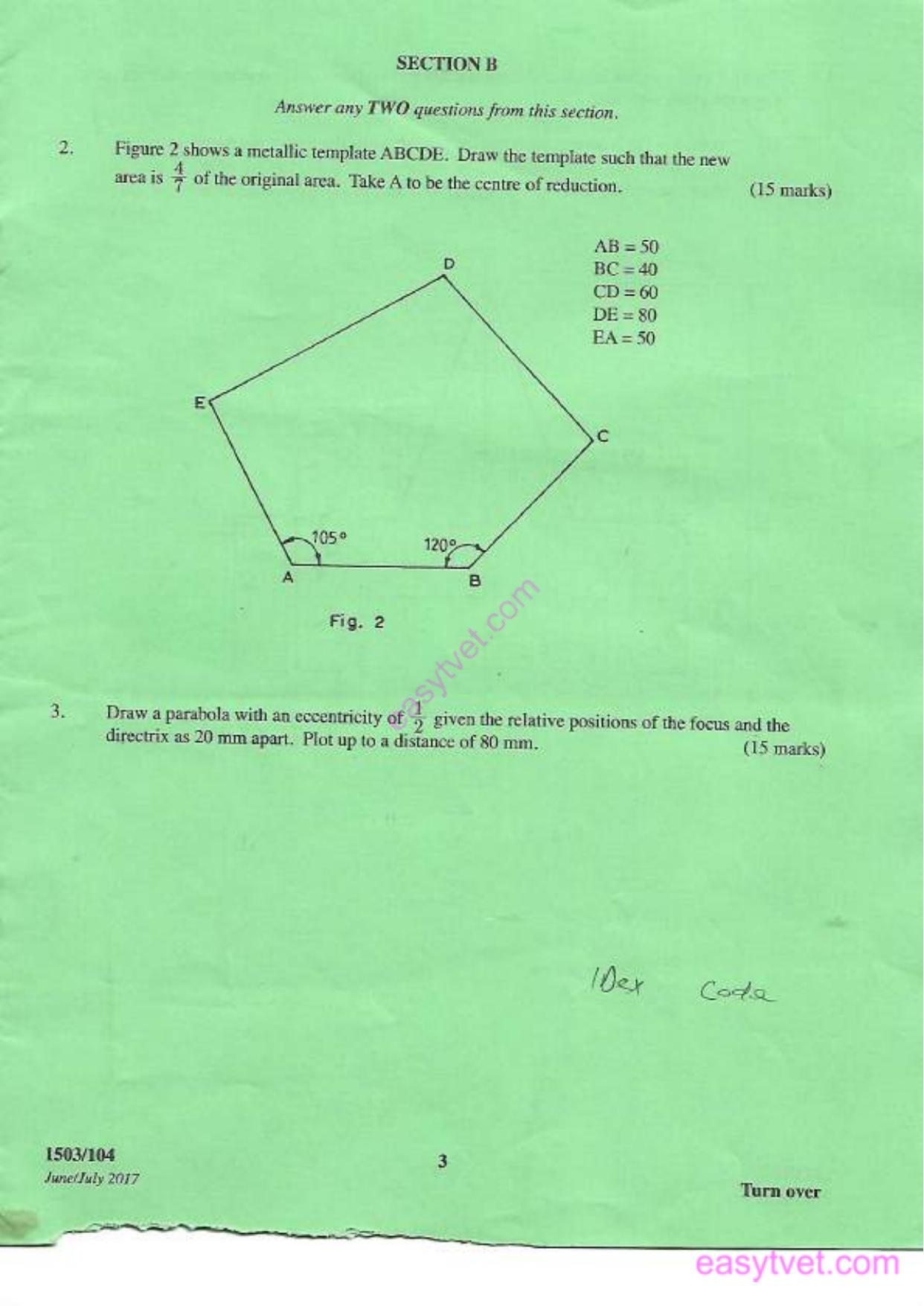

  3. Technical Drawing (2017) — page 3 of 6

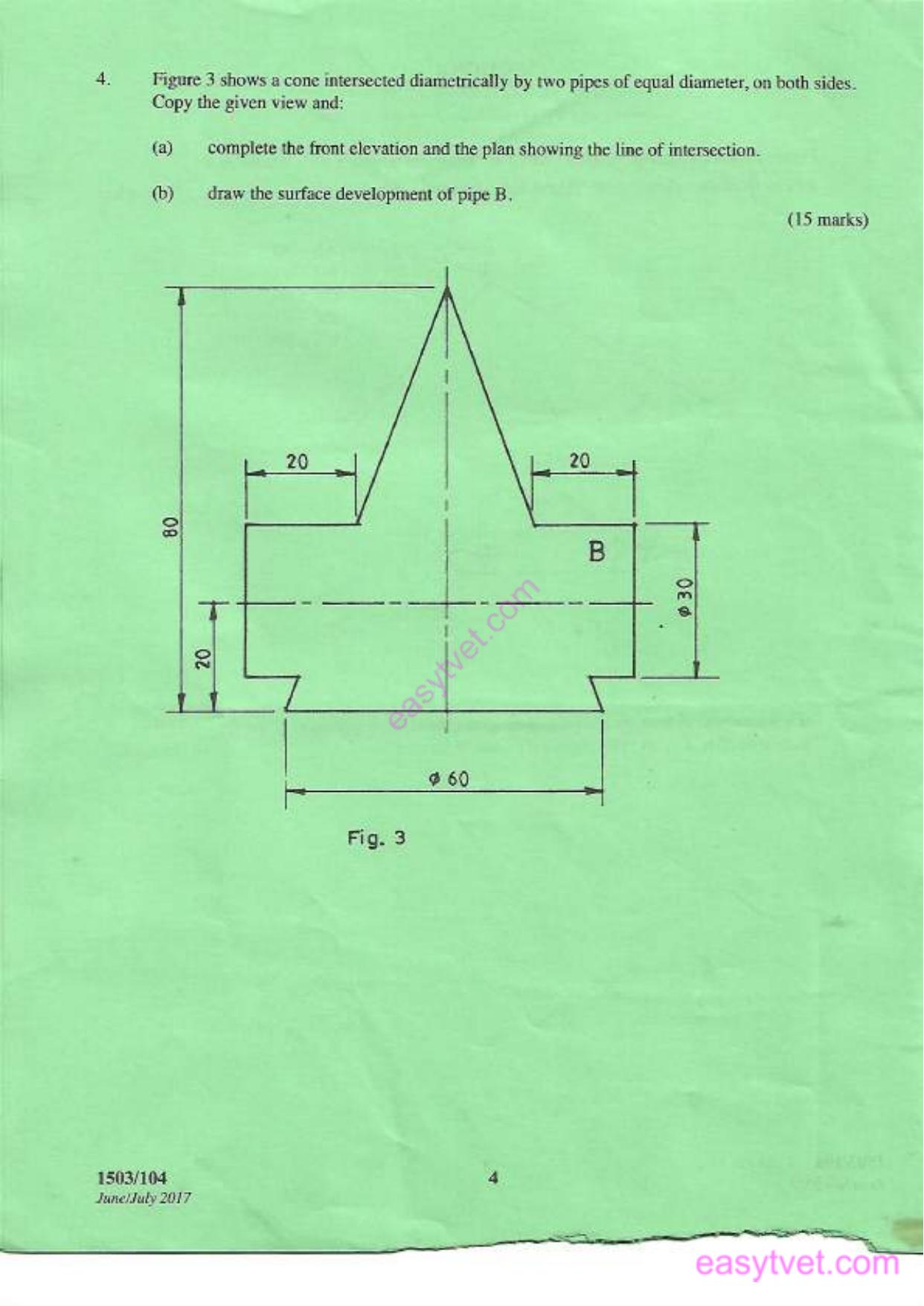

  4. Technical Drawing (2017) — page 4 of 6

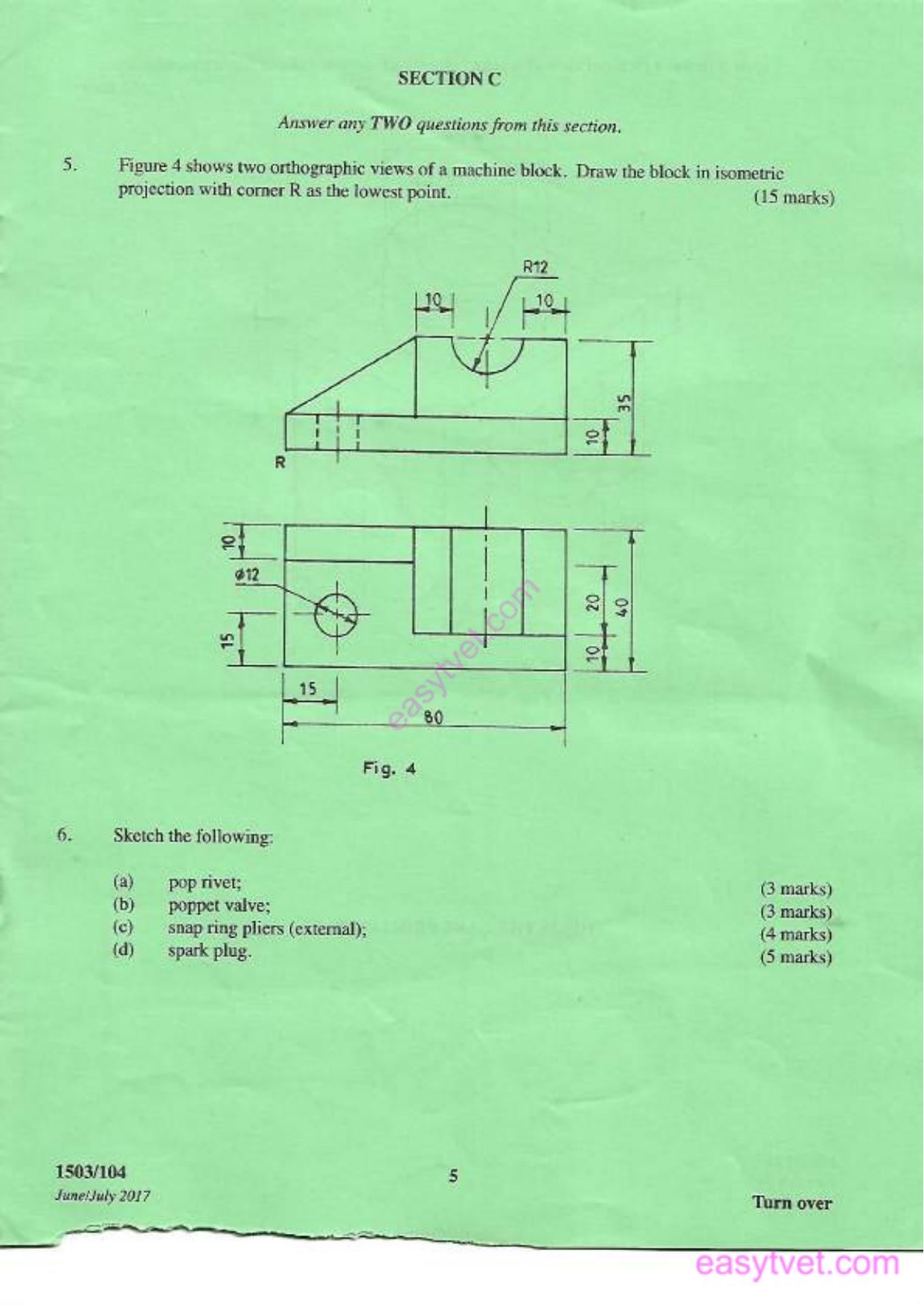

  5. Technical Drawing (2017) — page 5 of 6

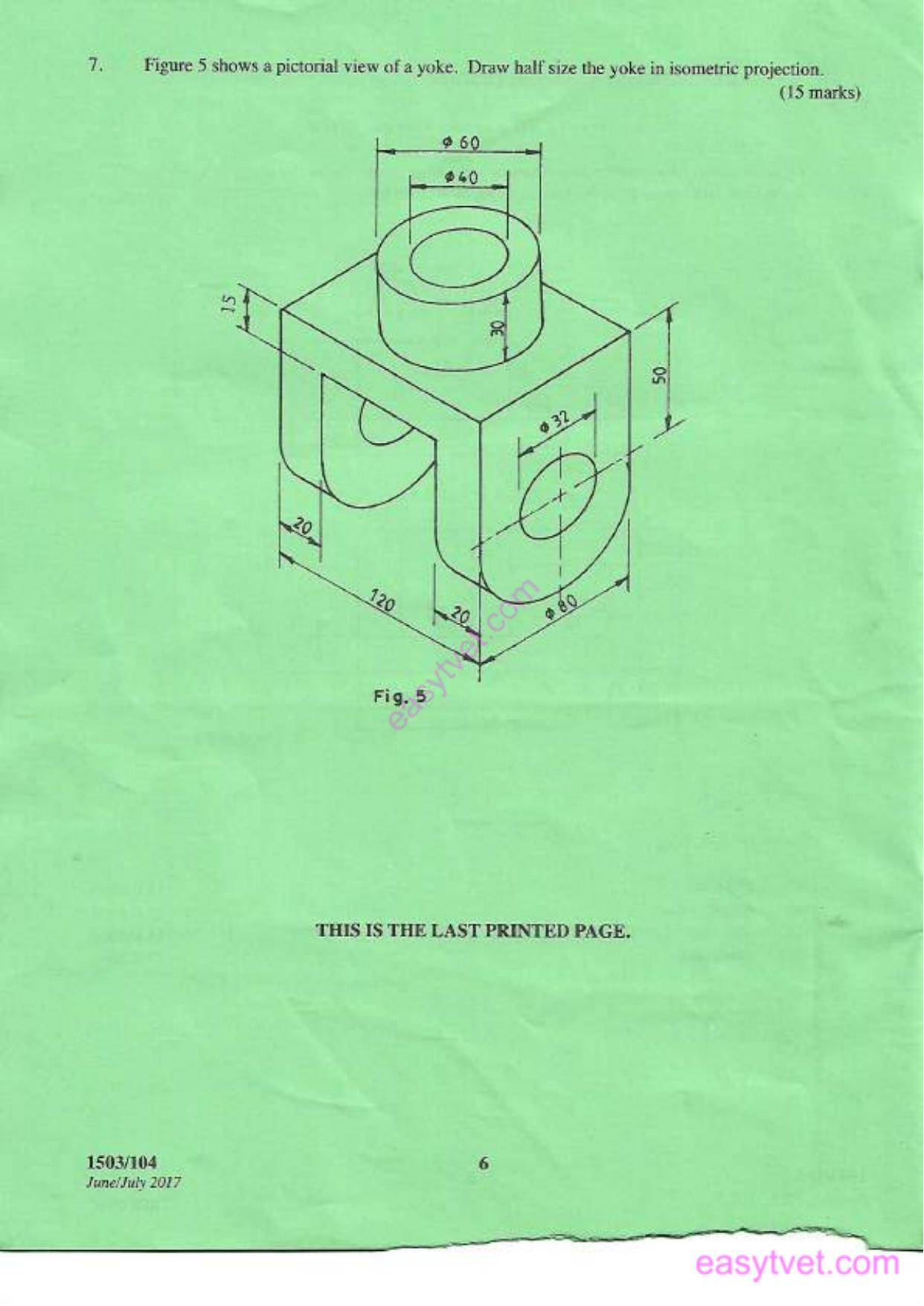

  6. Technical Drawing (2017) — page 6 of 6
Download paper
