Technical Drawing (2011)

Craft Certificate · 2011 · June/July

8 pages · PDF · 361.9 KB

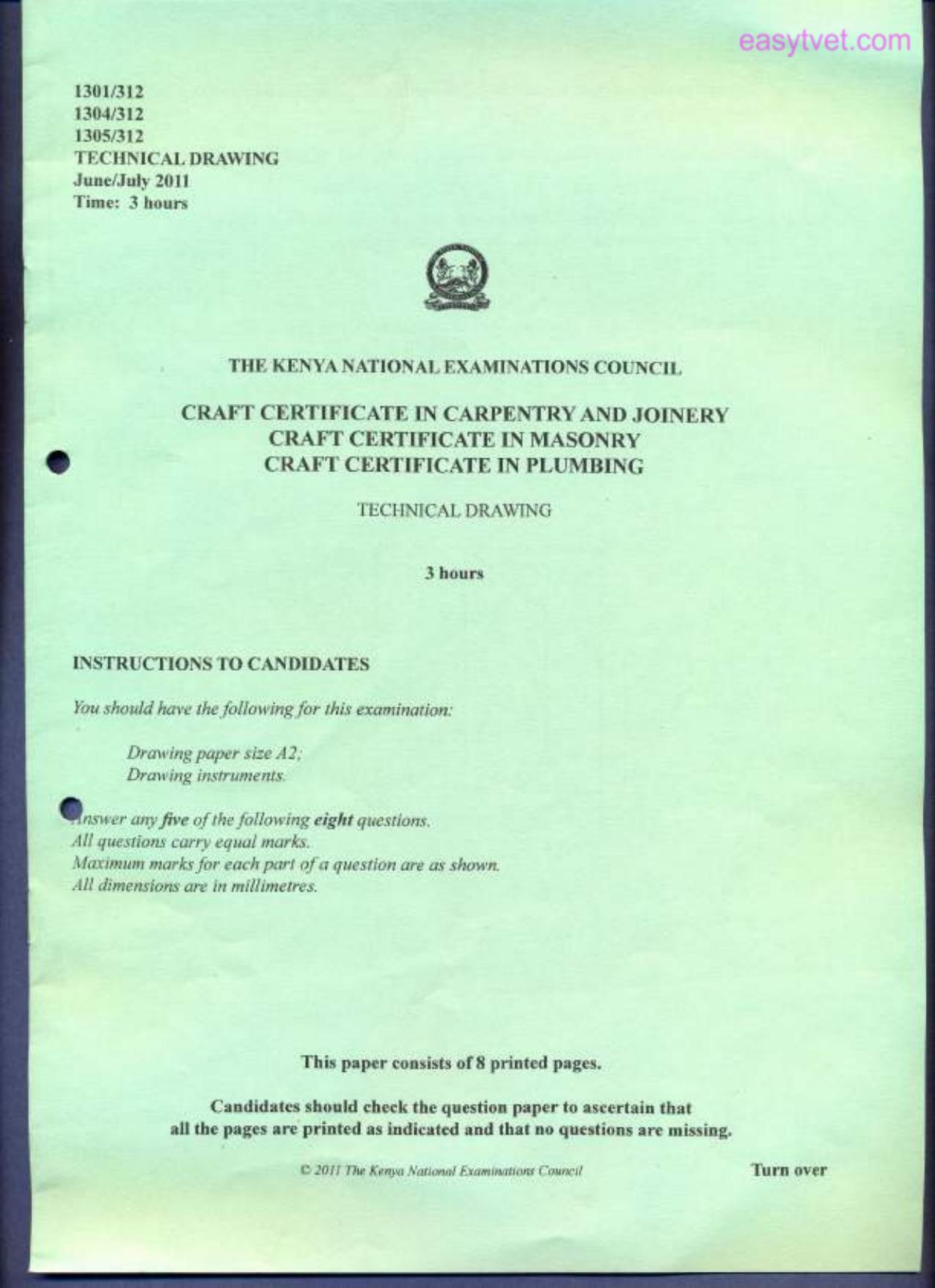

  1. Technical Drawing (2011) — page 1 of 8

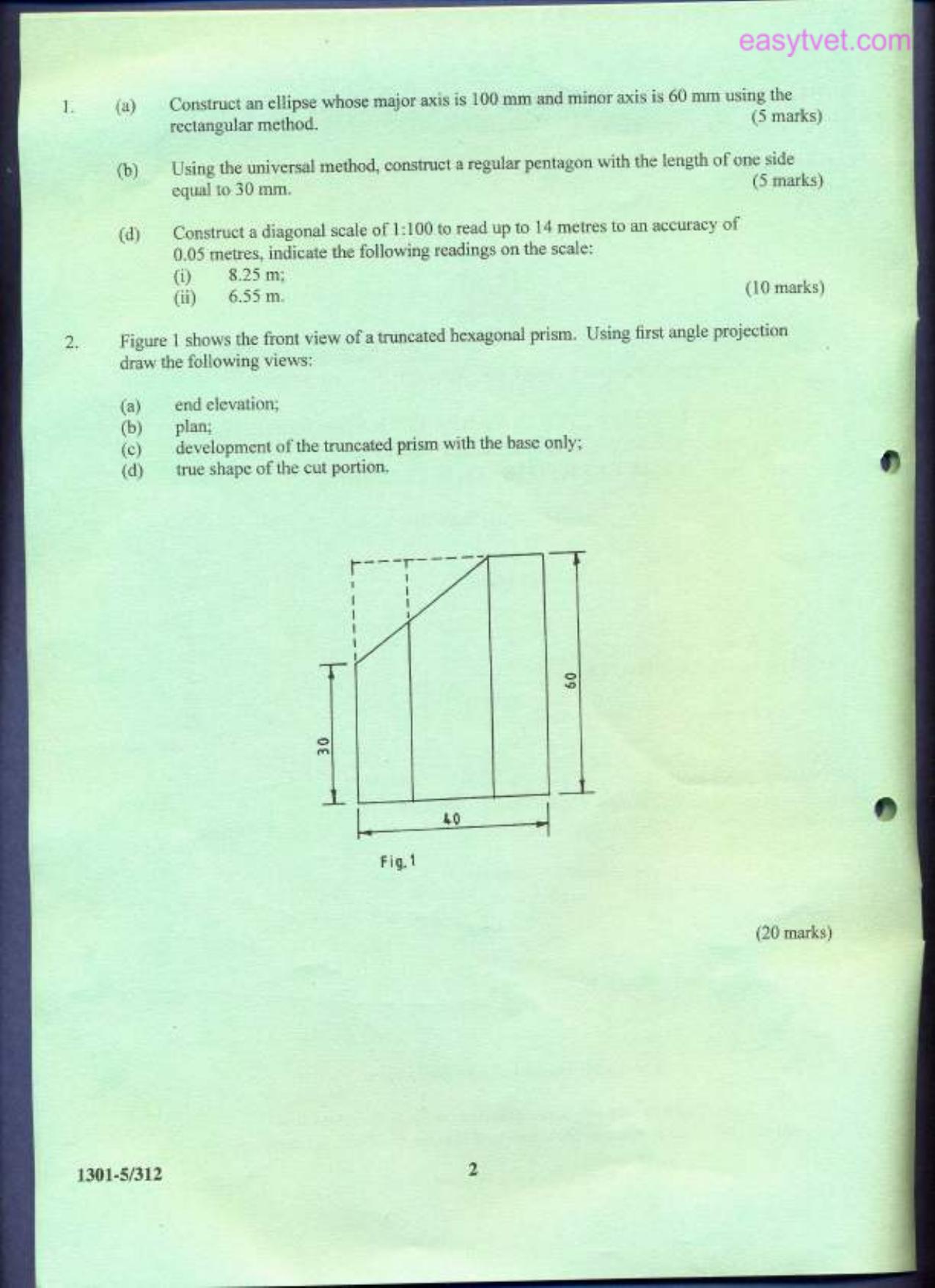

  2. Technical Drawing (2011) — page 2 of 8

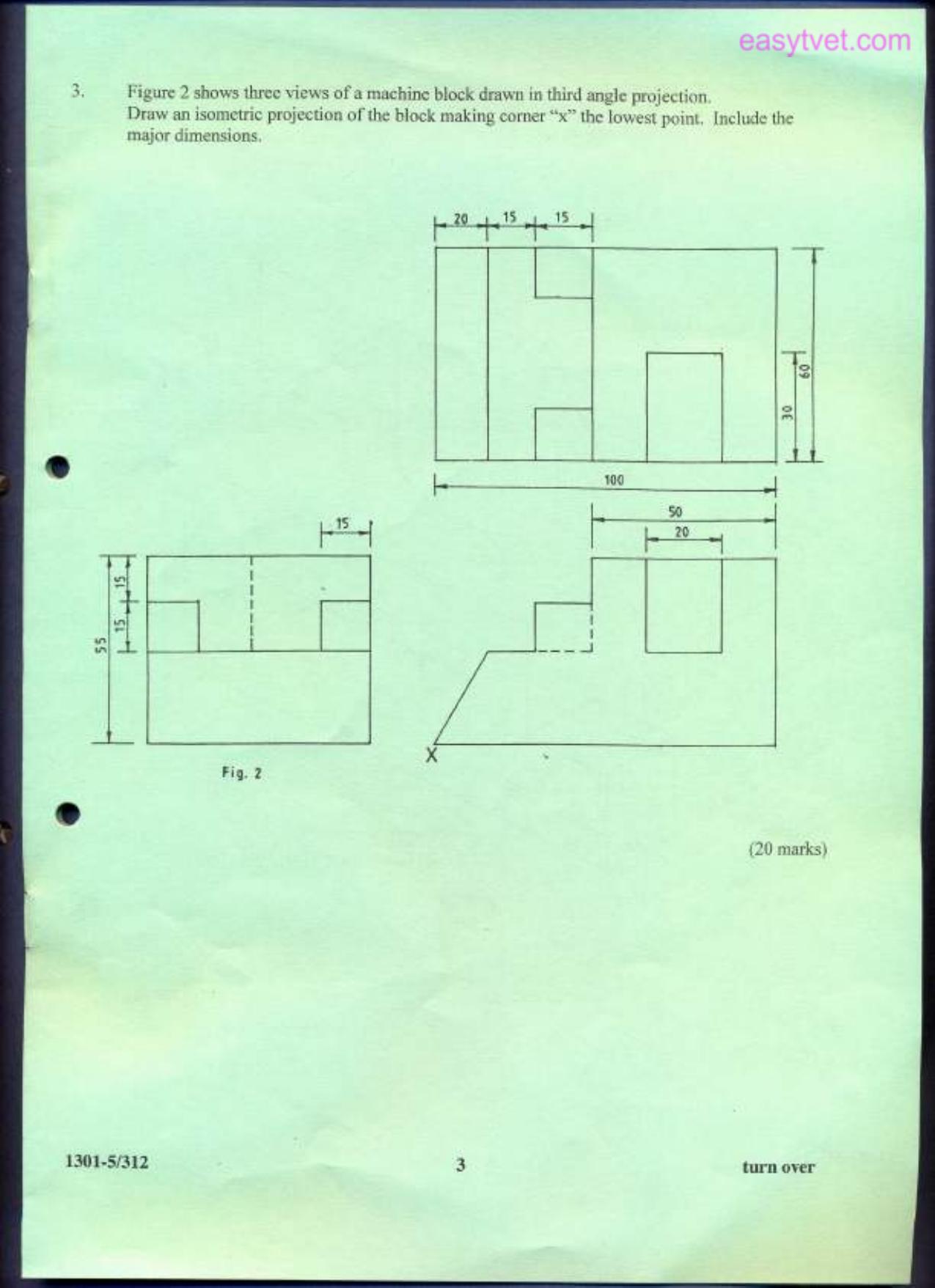

  3. Technical Drawing (2011) — page 3 of 8

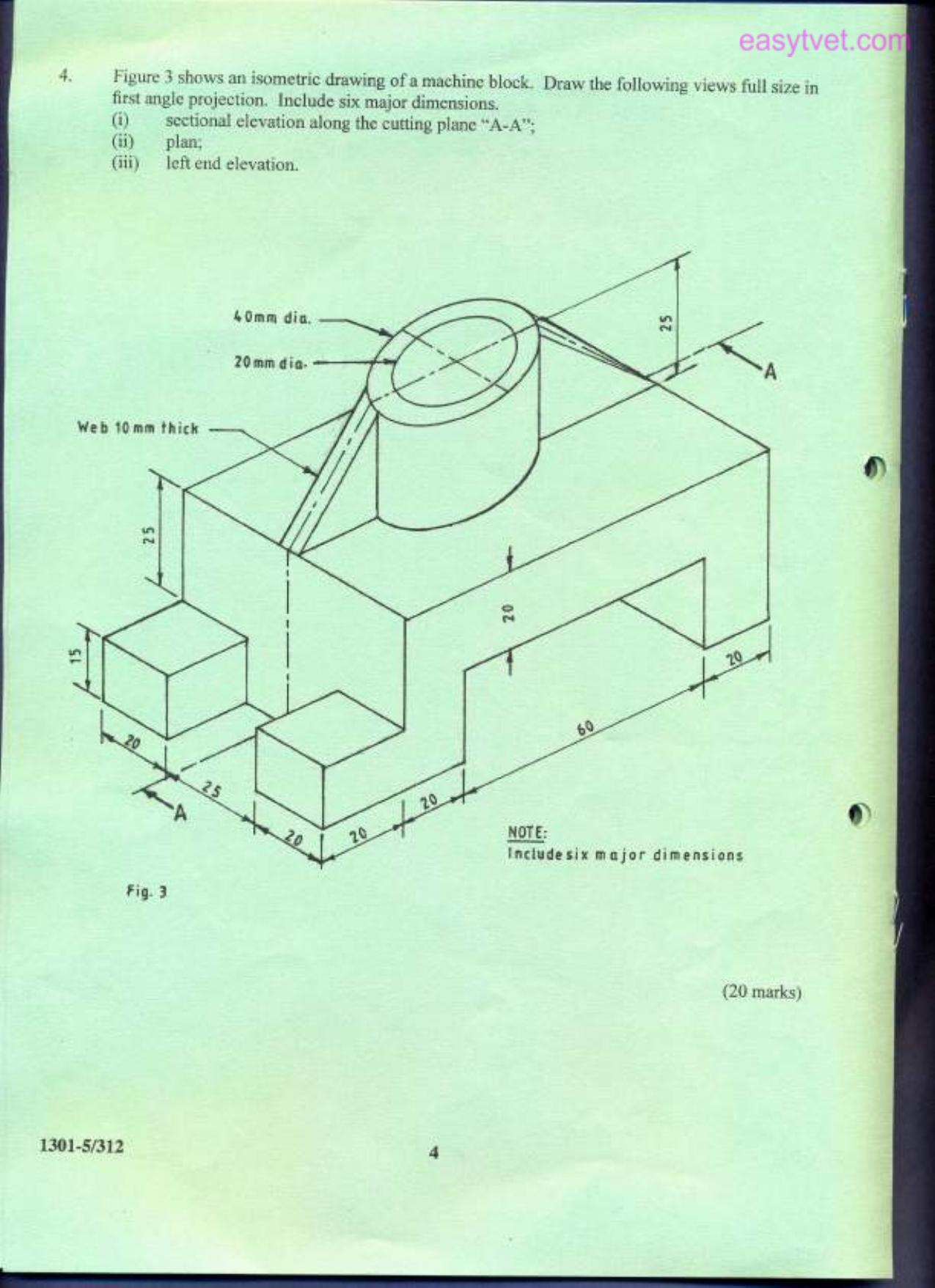

  4. Technical Drawing (2011) — page 4 of 8

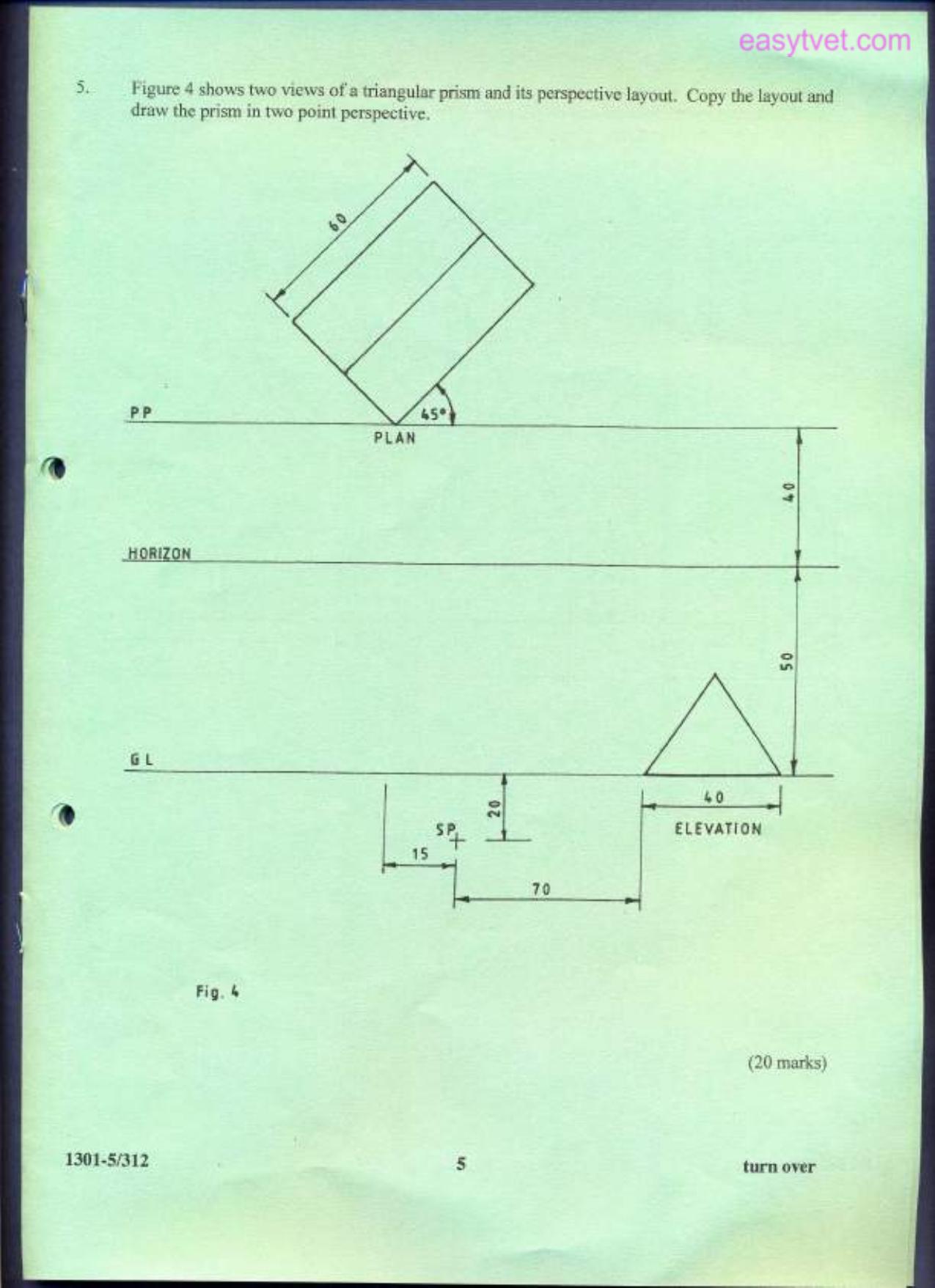

  5. Technical Drawing (2011) — page 5 of 8

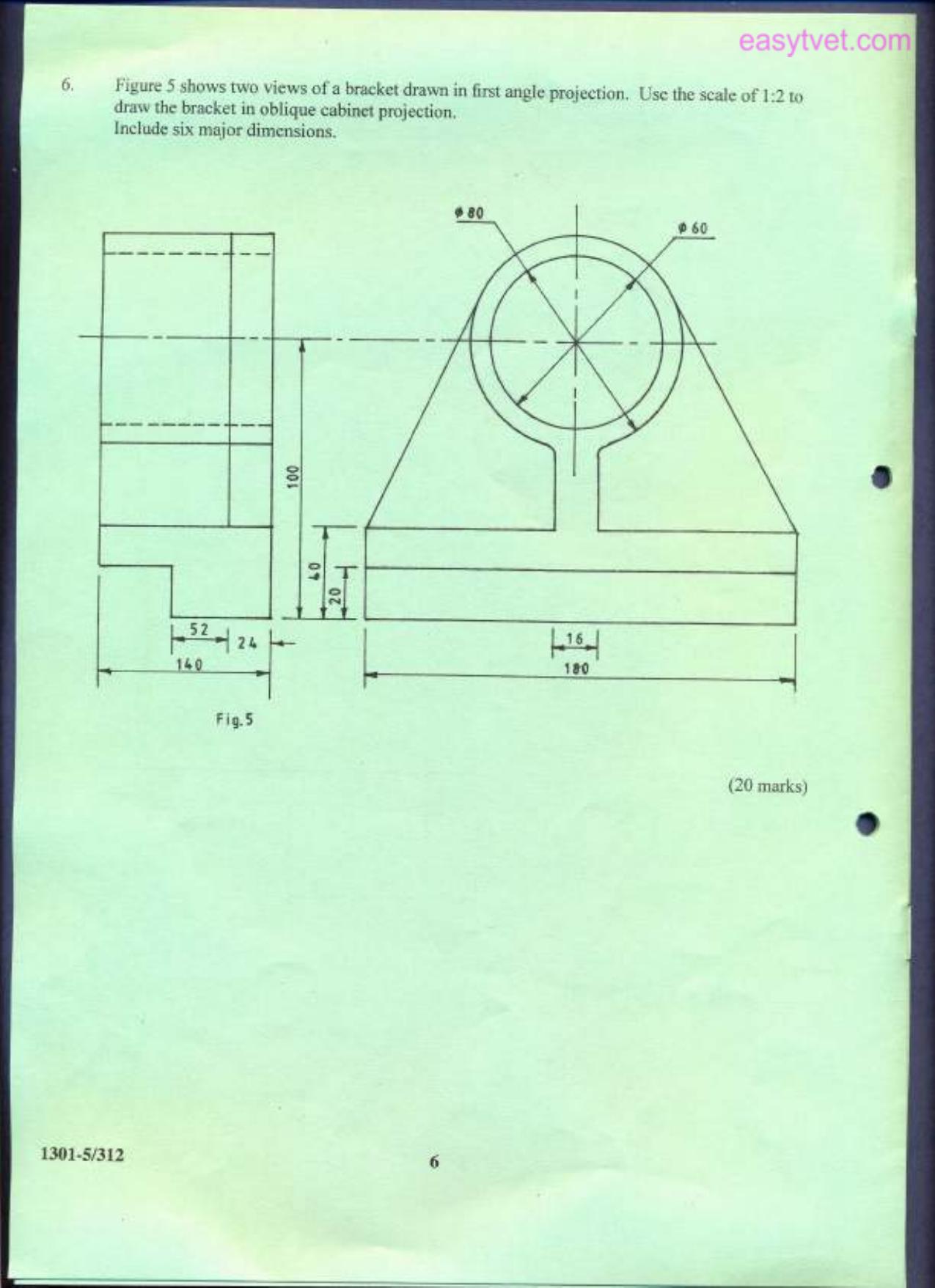

  6. Technical Drawing (2011) — page 6 of 8

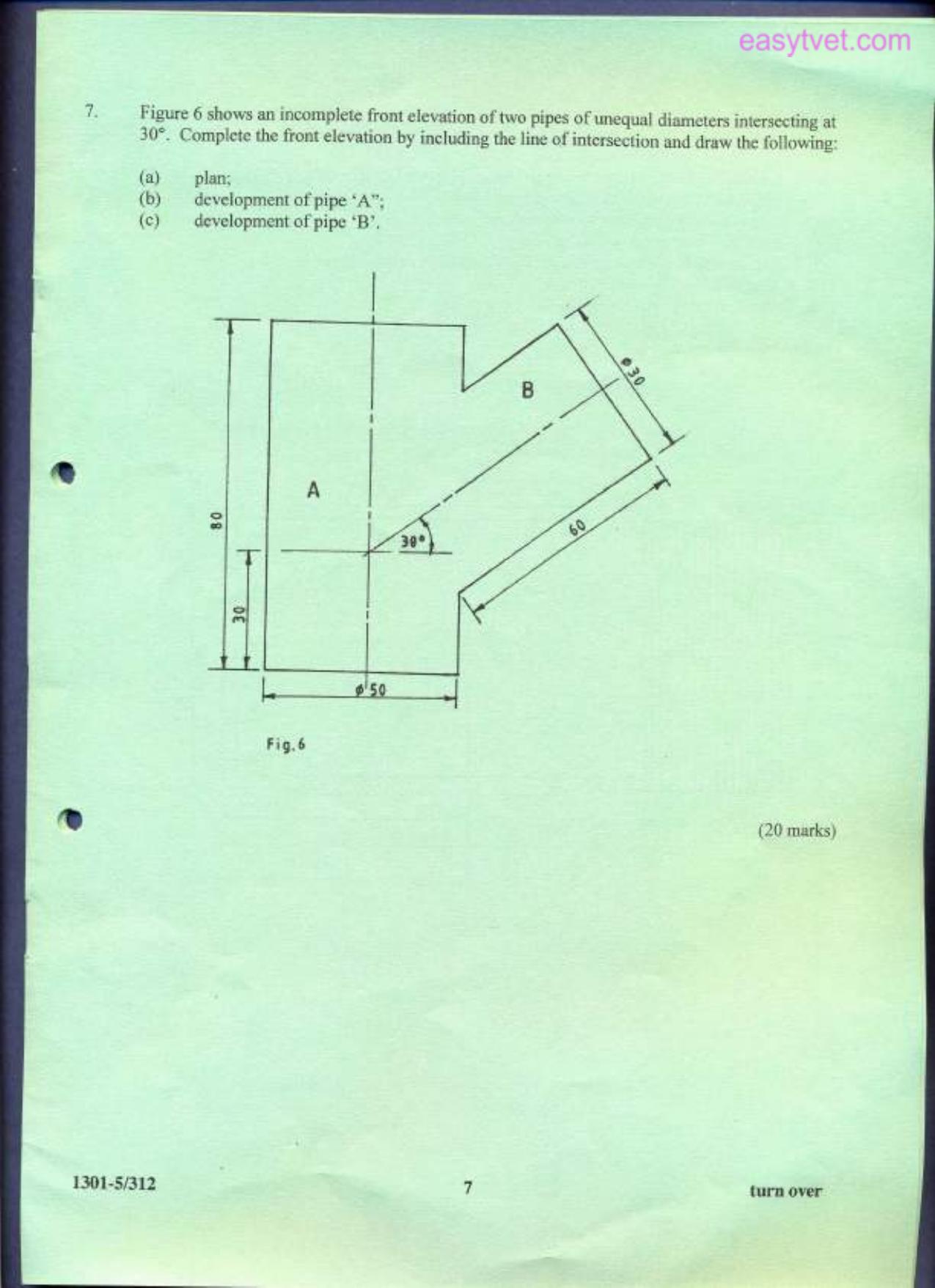

  7. Technical Drawing (2011) — page 7 of 8

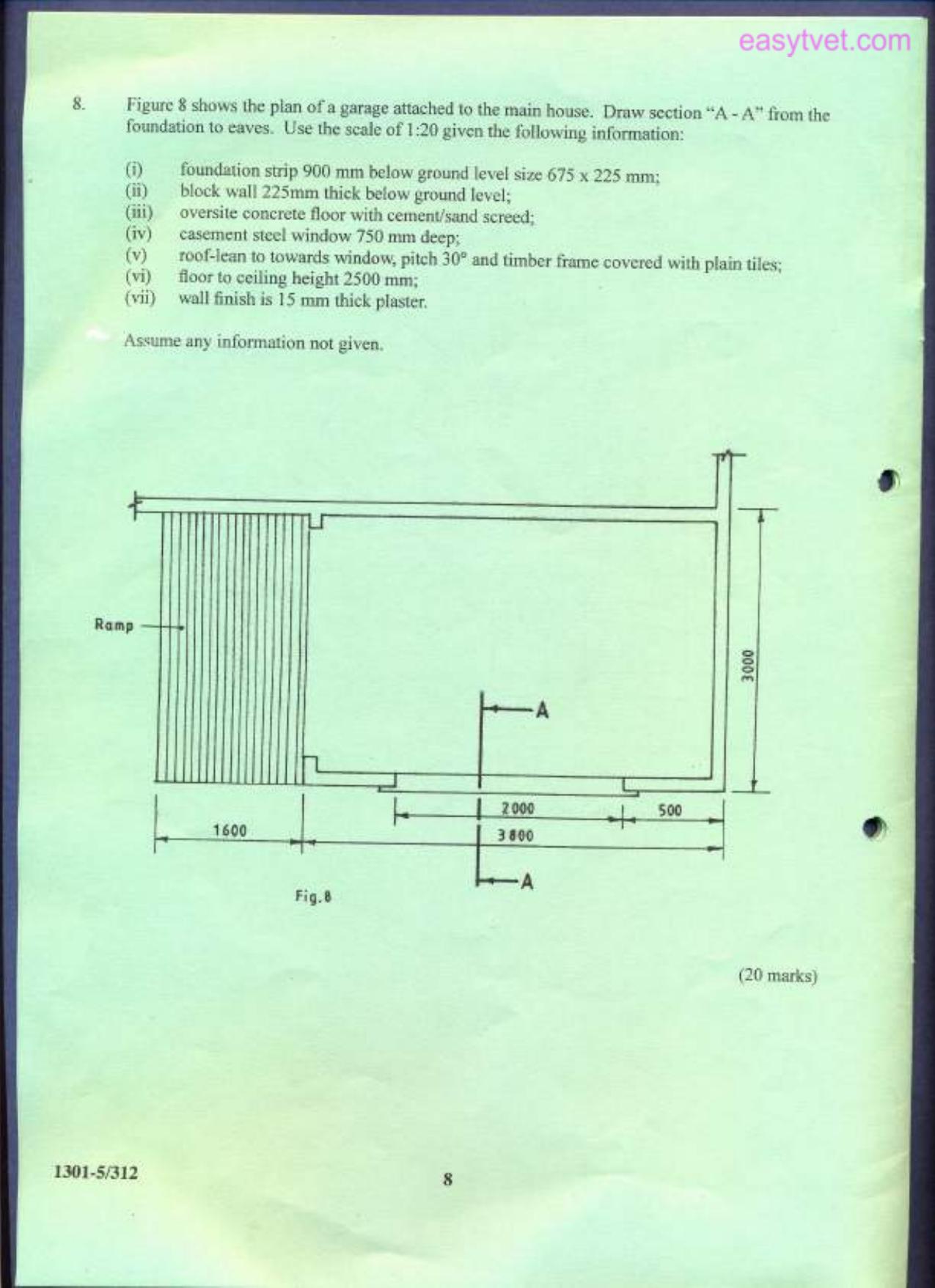

  8. Technical Drawing (2011) — page 8 of 8
