Technical Drawing (2009)

Craft Certificate · 2009 · June/July

9 pages · PDF · 445.7 KB

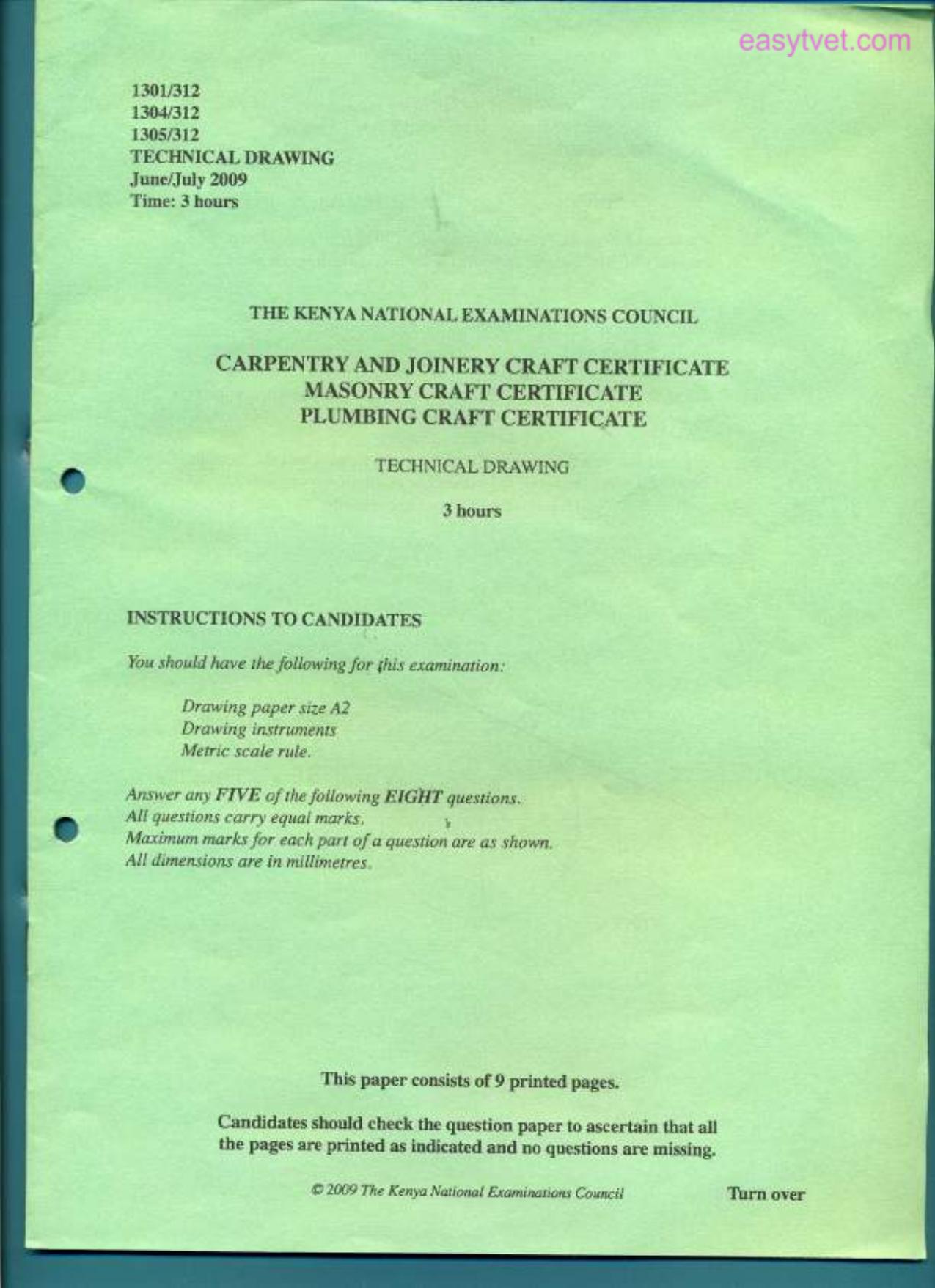

  1. Technical Drawing (2009) — page 1 of 9

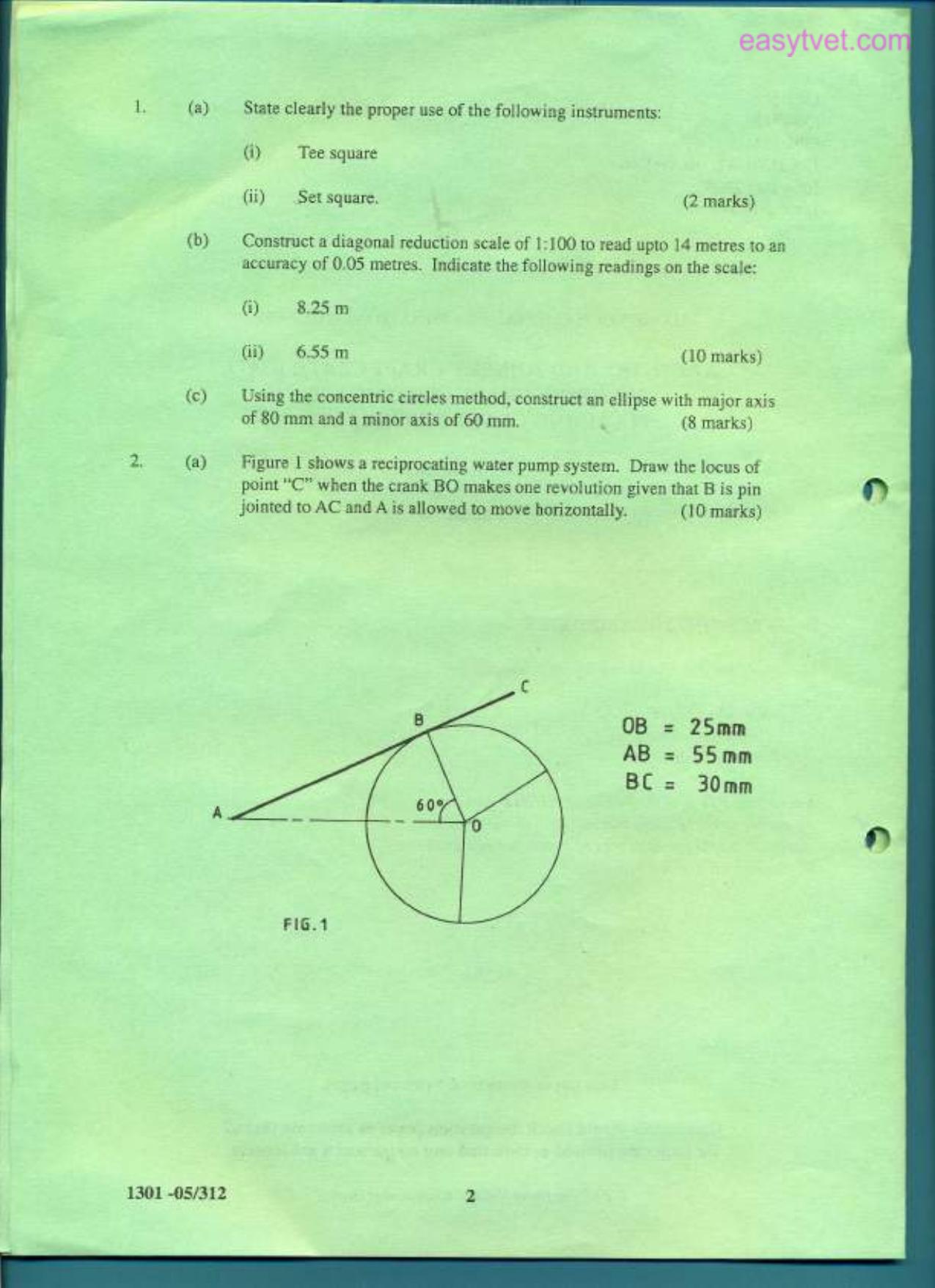

  2. Technical Drawing (2009) — page 2 of 9

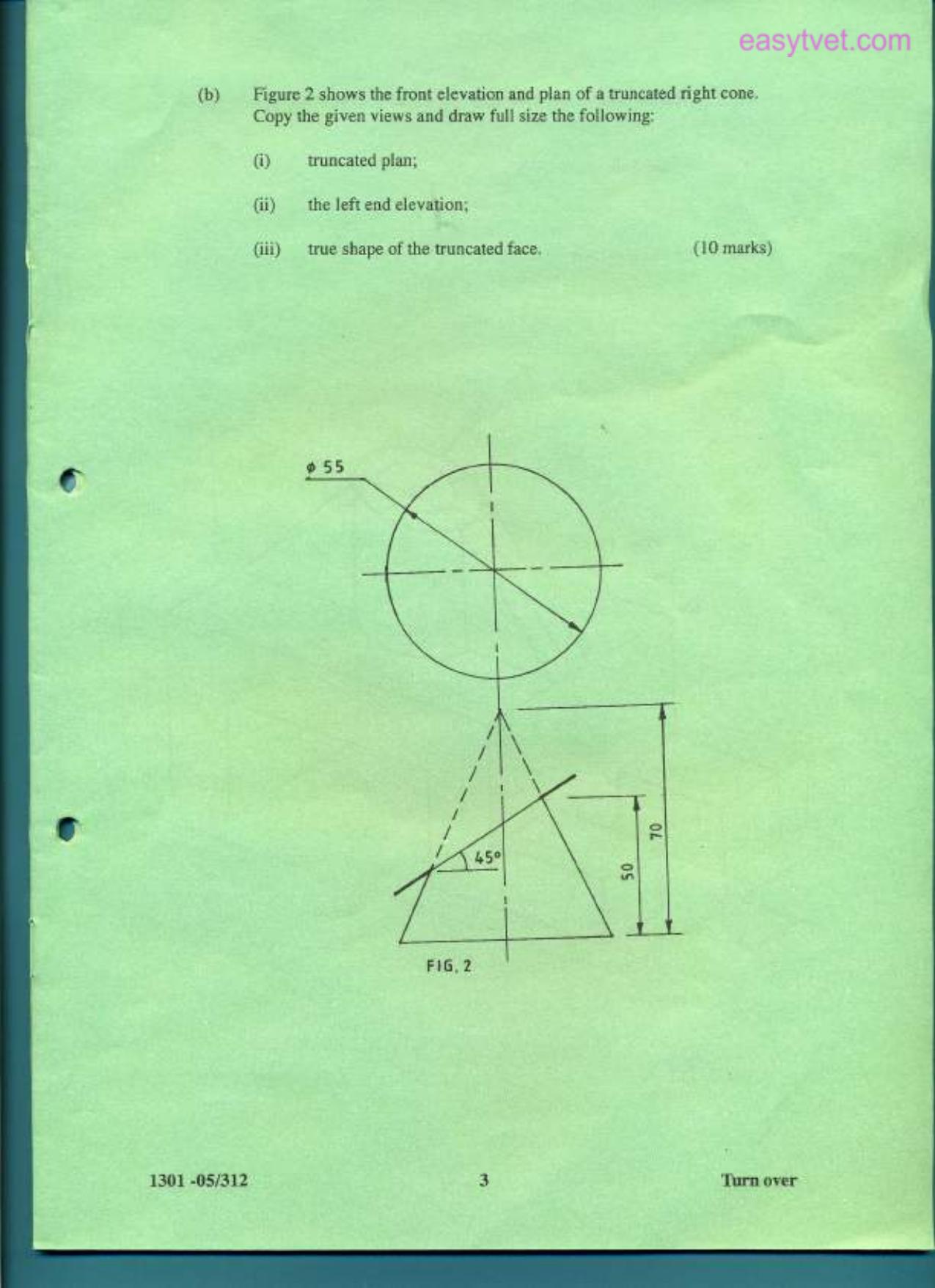

  3. Technical Drawing (2009) — page 3 of 9

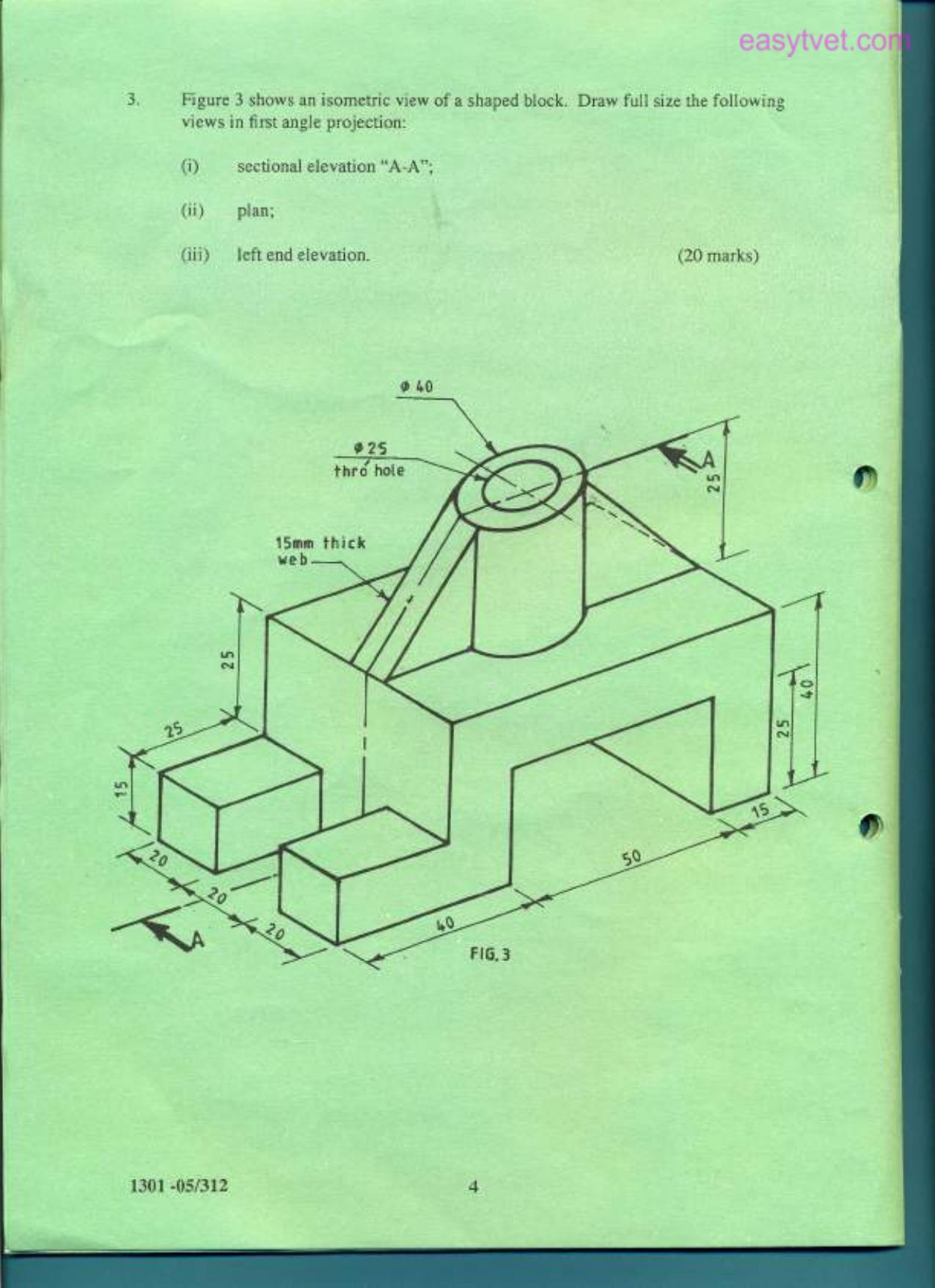

  4. Technical Drawing (2009) — page 4 of 9

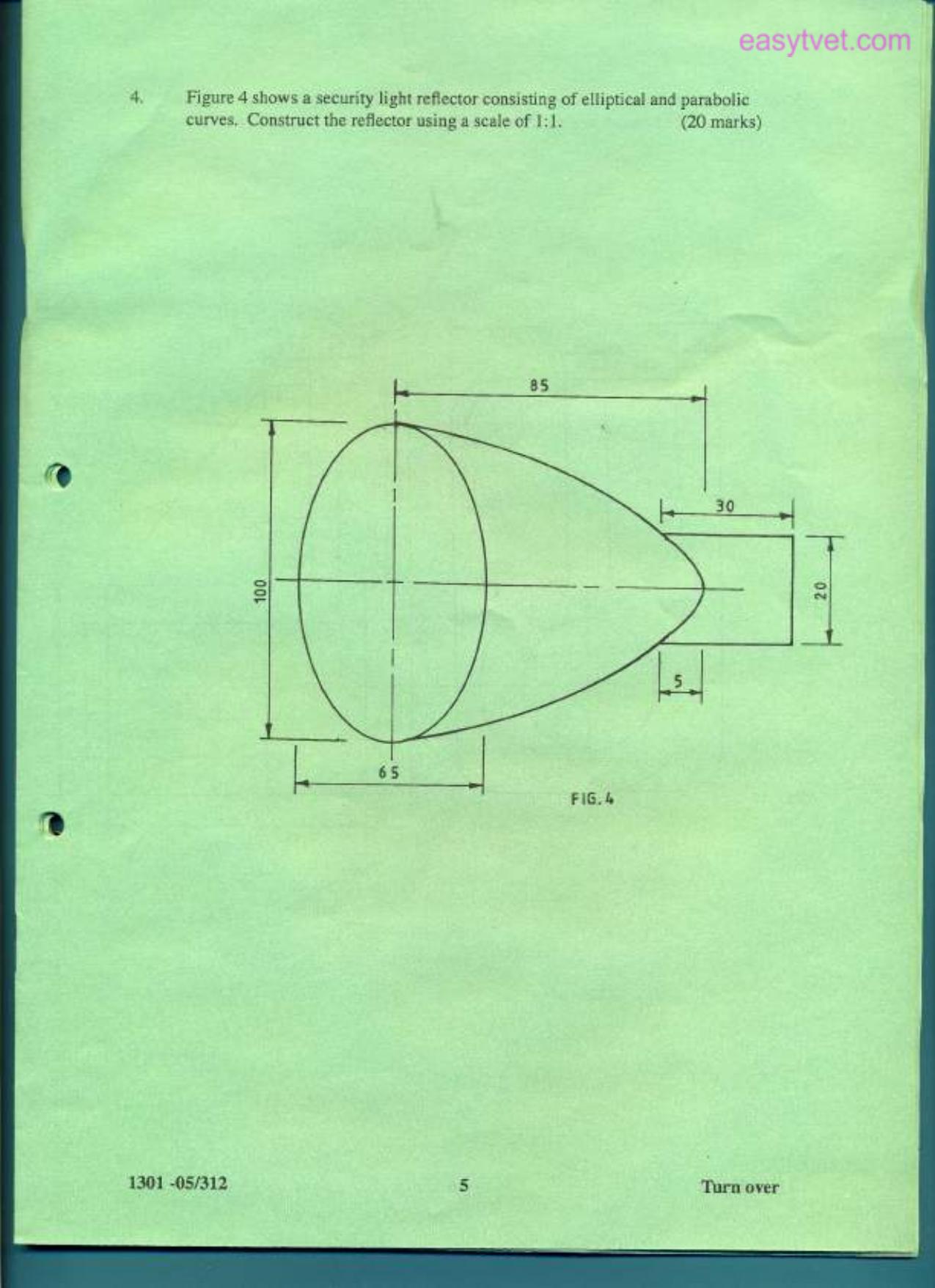

  5. Technical Drawing (2009) — page 5 of 9

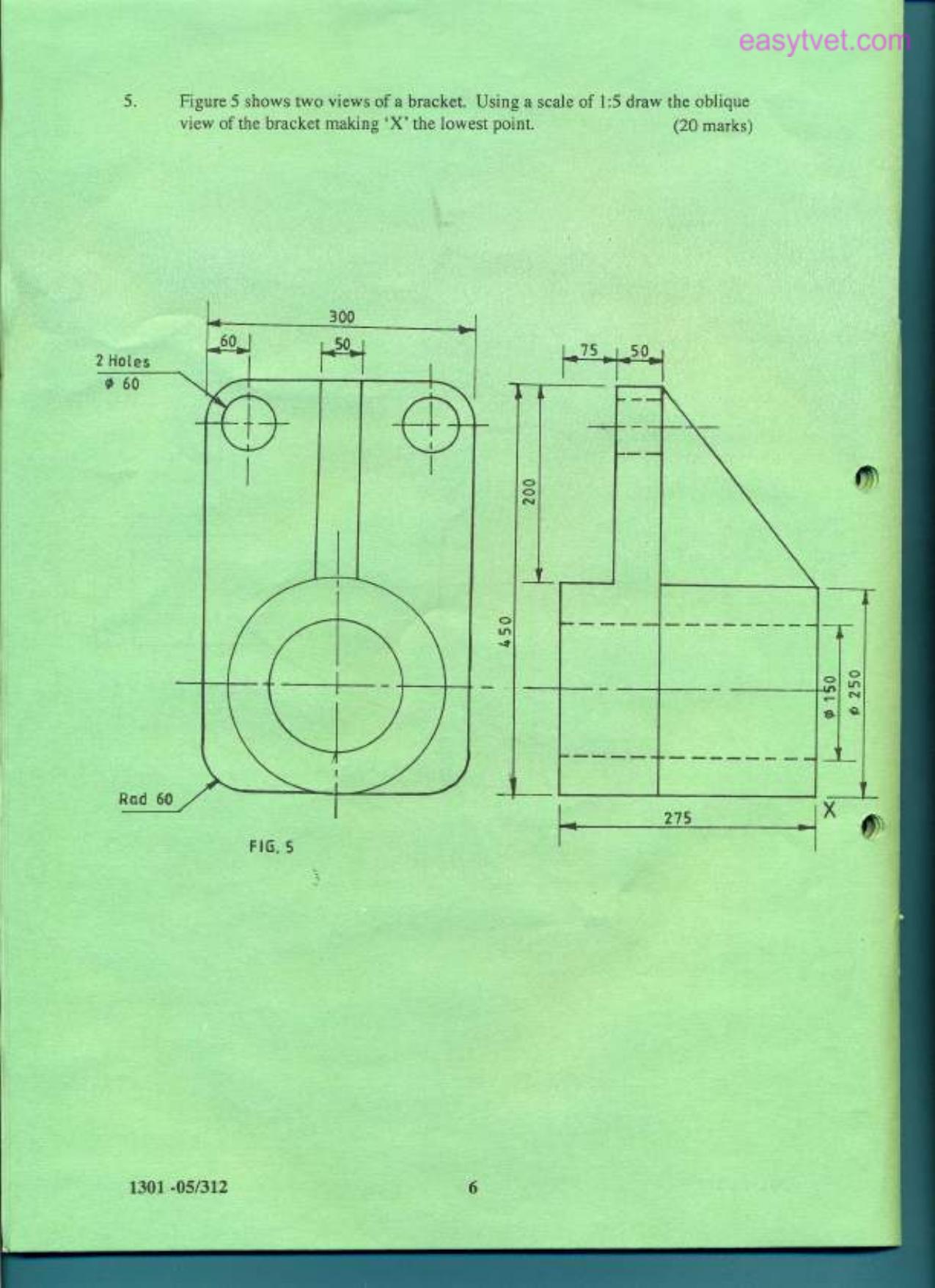

  6. Technical Drawing (2009) — page 6 of 9

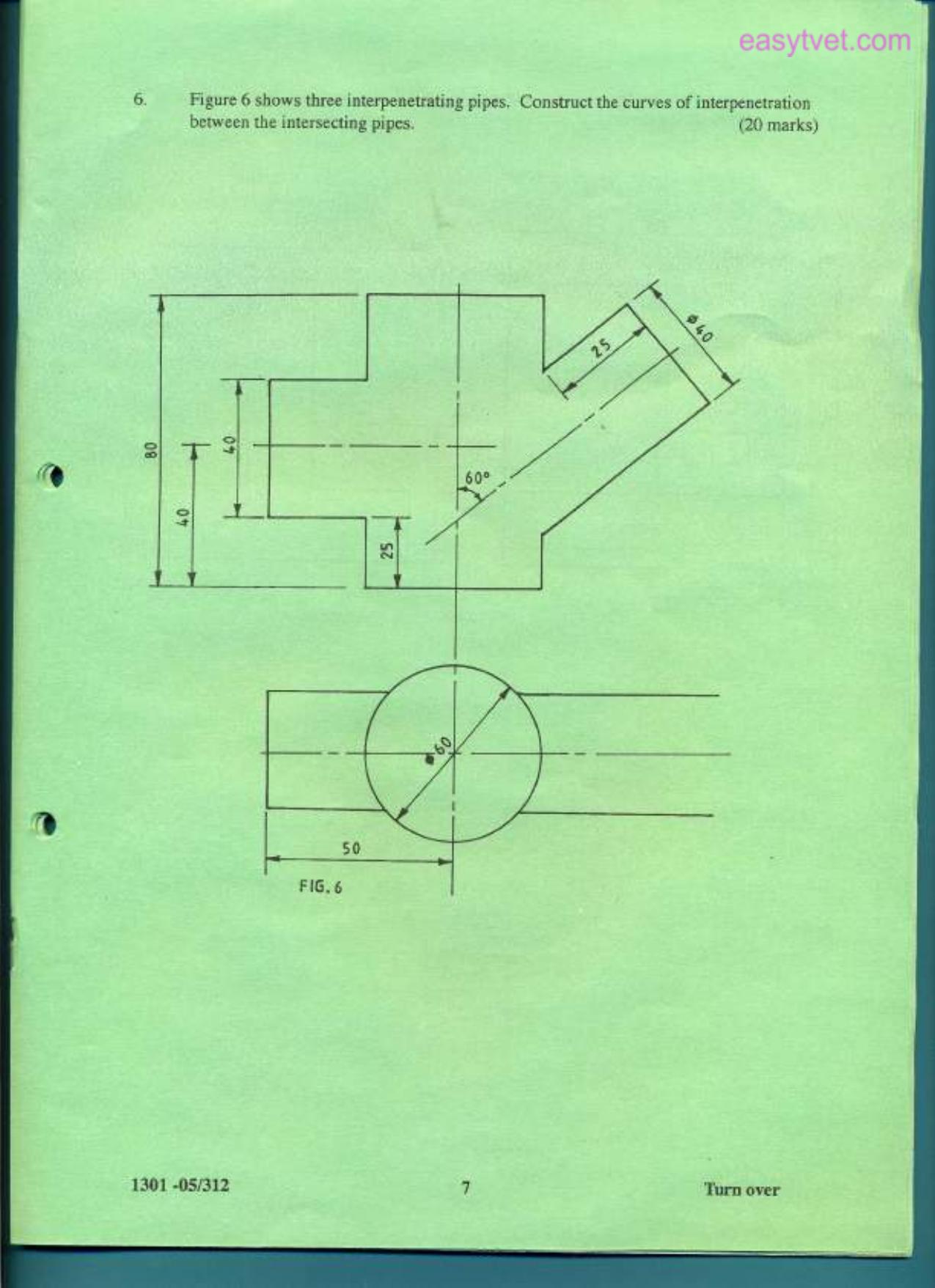

  7. Technical Drawing (2009) — page 7 of 9

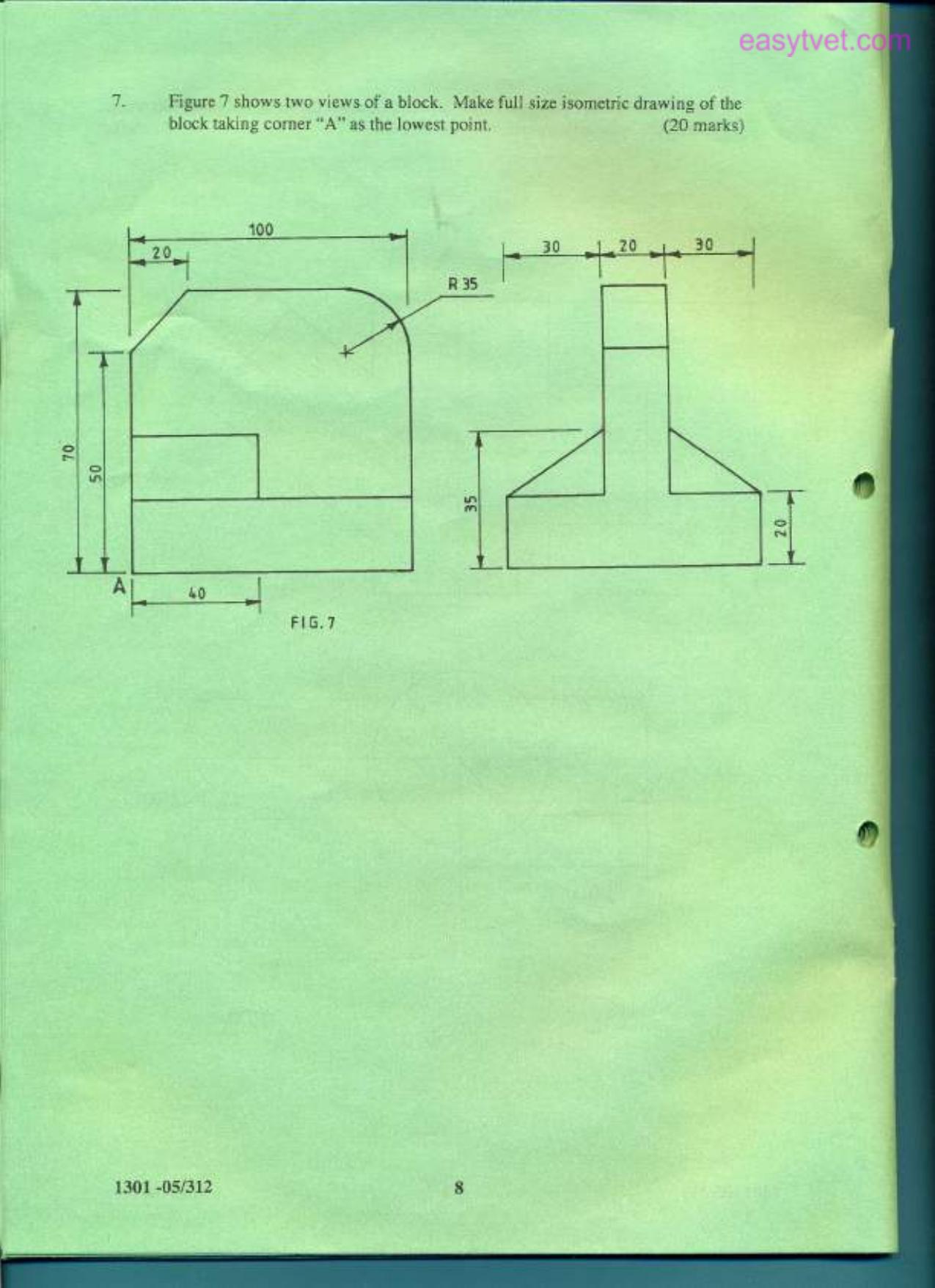

  8. Technical Drawing (2009) — page 8 of 9

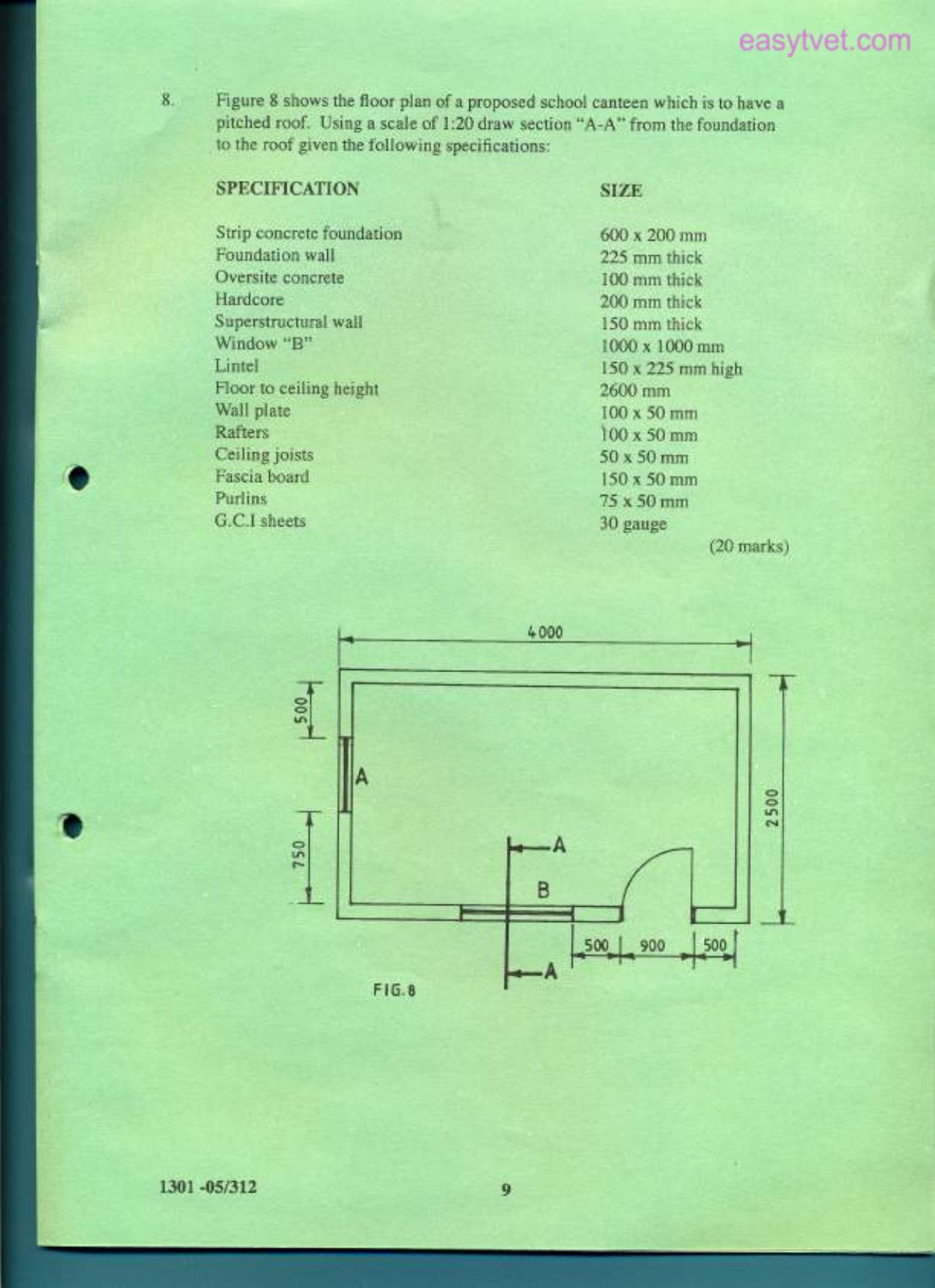

  9. Technical Drawing (2009) — page 9 of 9
